USLP 9142 - Log Periodic Antenna

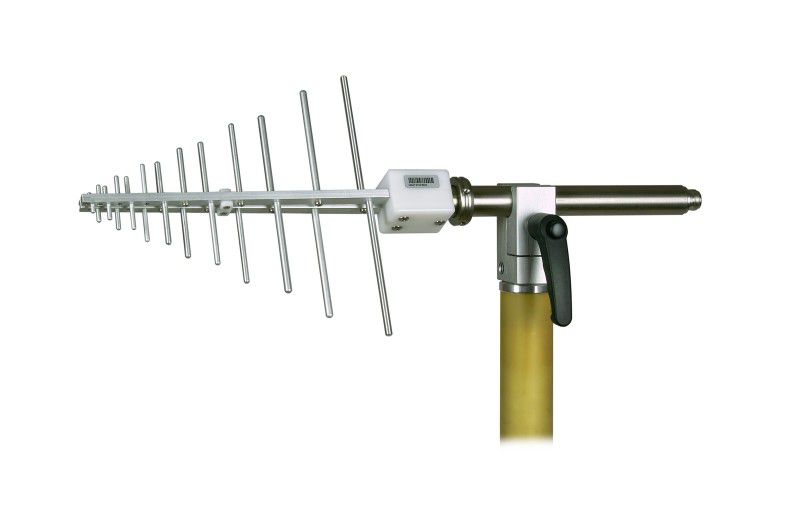

  • USLP 9142  Log. - Per. Antenna
  • USLP 9142 - Typical Antenna Factor

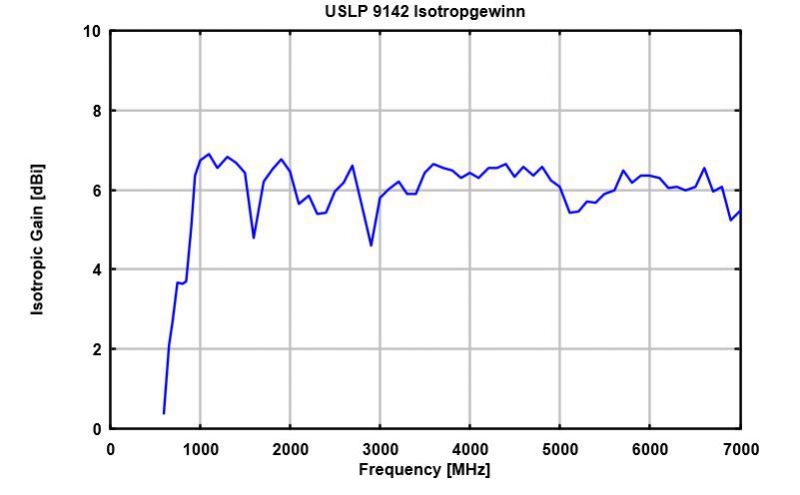

  • USLP 9142 - Typical Antenna Gain
Frequency Range:

0.7 - 5 (8) GHz

Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power: 50 W
Connector: Type N female
Impedance: 50 Ω nominal



Length: 46 cm
Width: 20 cm
Height:
Weight: 0.5 kg
Mounting: 22 mm tube
Recommended Adapter: AA 9203 / AA 9202



Datasheet USLP 9142

Radiation Pattern
