FESP 5133-1330 Circular Coil



FESP 5133-1330 - Circular Coil

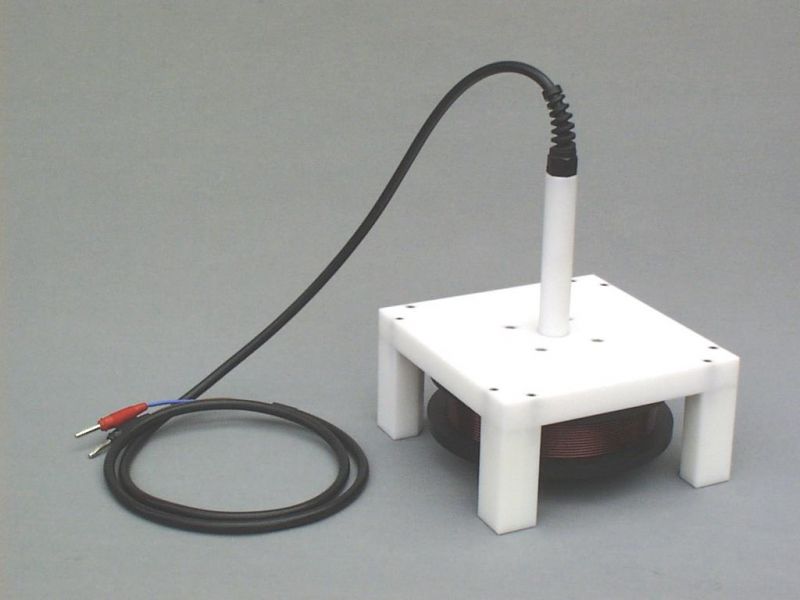

  • Schwarzbeck FESP5133_1330 circular radiating loop



The handheld coil FESP 5133-1330 was designed for immunity testing against magnetic fields up to approx. 20 kHz. The coil has 225 turns of Cu-wire on 15 layers. There are spacers to provide a constant distance of 50 mm between coil center and EuT-surface. The generated magnetic fieldstrength is direct proportional to the coil current. Typical Applications are Immunity Tests according to the Measuring Method SF 01 G acc. to VG 95377 standard.



Medium coil diameter: 126 mm
Medium Coil Distance to Surface: 50 mm
Number of turns: 225
Wire Diameter: 2 mm
Mechanical Dimensions: 190 x 190 x 290 mm
Terminals: 4 mm Laborstecker
Usable Frequency Range: 0 - 20 (50) kHz
Inductance: 6.5 mH
Resistance: 0.5 Ω
Capacitance: 240-300 pF
Resonance Frequency: 120 kHz
Impedance: |Z|=42 @ 1 kHz
Max. Current: 20 A
Max. Fieldstrength at 50 mmspacing: 17 kA/m

Max. magnetic fieldstrength at 1 A coil current in 50 mm distance:

858.2 A/m
Required Current for 1000 A/m in 50 mm distance: 1.165 A
Magnetic Flux Density at 1 A coil current in 50 mm distance:

1.078 mT
180.66 dBpT

Conversion Current-Magnetic Fielstrength: 58.67 dB/m

Weight:

5.3 kg

Standard:

Measuring Method SF 01 G acc. to VG95377
