BBHA 9120 F - Double Ridged Broadband Horn Antenna

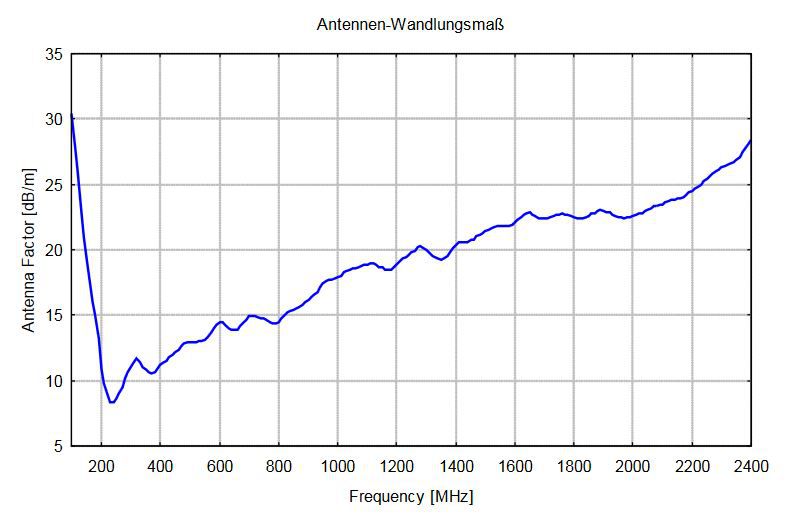

  • BBHA 9120 F - Typical Antenna Factor

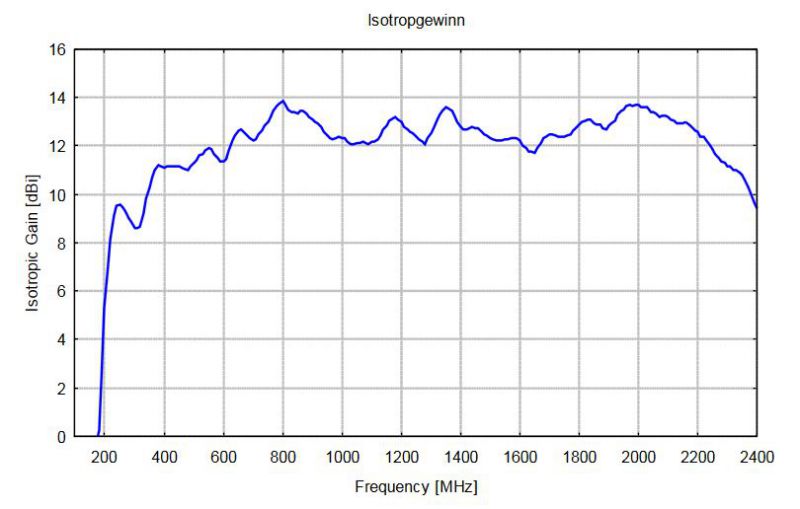

  • BBHA 9120 F - Typical Gain
  • Schwarzbeck BBHA 9120F Double Ridged Broadband Horn Antenna



Linear polarized double ridged broadband horn antenna for receive and transmit applications made of aluminium. An optional 7-16 connector is available for high power applications. Frequency range 0.2 GHz to 2 GHz.





Frequency Range, nominal: 0.2 GHz - 2 GHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power:

see diagramm

Connector:

N - female
7/16 - female (optional)

Impedance: 50 Ω nominal
Length: 950 mm
Width: 960 mm
Height: 680 mm
Weight: 16 kg
Mounting:

Center Mount M12, M10 and 3/8"

Recommended Accessories: PDG 9211 - Polarisation Swivel Fixture



Option:

Opt. 7/16 - with 7/16-connector 3 kW

Opt. 1m - Very short telescopic tube to be inserted into the steel foot of AM 9144 to set BBHA 9120 F to a height of 1 m referring to the antenna center in both polarisations.



Datasheet BBHA 9120F



Radiation Pattern



VSWR



Fieldstrength



Datasheet BBHA 9120 F Opt. 1 m
