STLP 9129 - Stacked Log Periodic Antenna

STLP 9129 - Stacked Log. Periodic Antenna

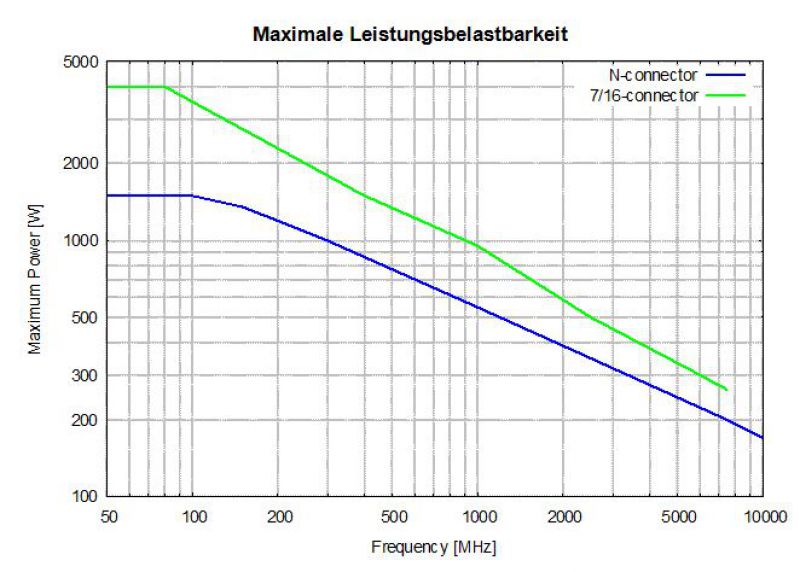

  • STLP 9129 - Max. Input Power

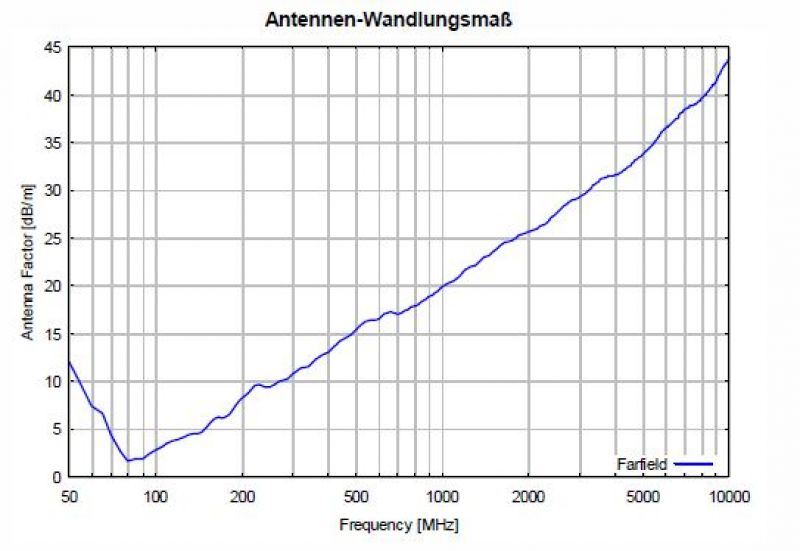

  • STLP 9129 - Typical Antenna Factor

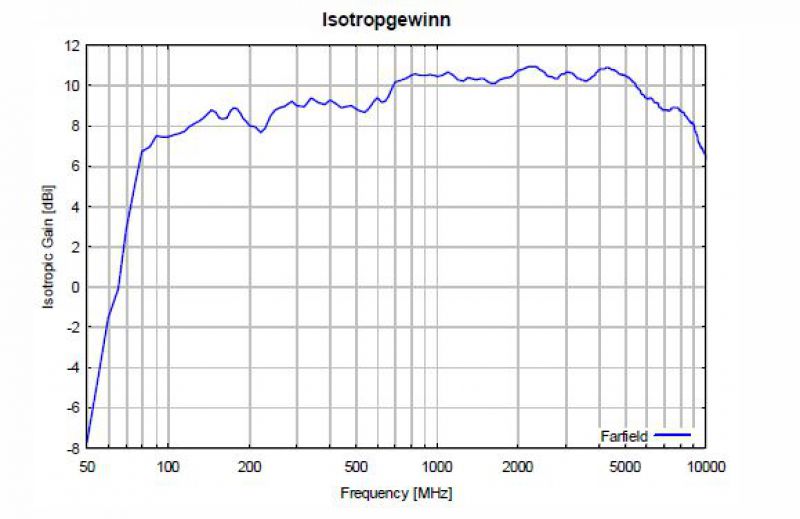

  • STLP 9129 - Typical Antenna Gain

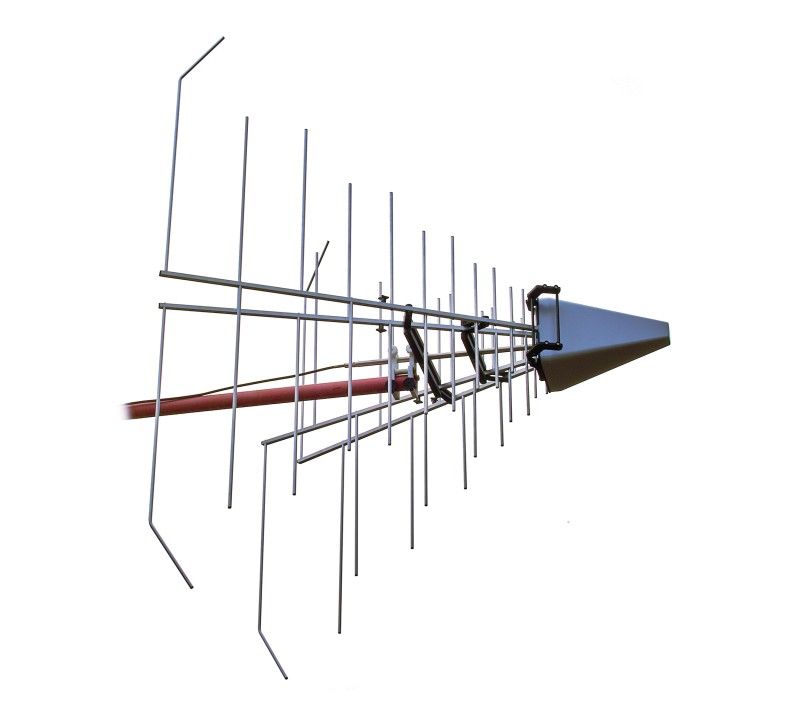

  • Schwarzbeck STLP 9129 Stacked Log-Per-Antenna


The STLP 9129 was especially designed for wideband immunity tests. The unique STLP 9129 is able to cover the entire frequency range from 70 MHz to 10 GHz with a typical isotropic farfield gain of 8.6 dBi with a ripple of less than +/- 2.3 dB only.

This unrivalled bandwidth was achieved by combining the both well proven antenna designs STLP 9128 D and the STLP 9149. The STLP 9129 does provide the optimum out of gain and field uniformity at the same time as well as both basic antennas do.


Main Application: Generation of defined high field strength levels for radiated immunity testing acc. IEC 61000-4-3.


Frequency Range:

70 MHz - 10 GHz



Pattern Type:





Type N female
Type 7/16 female

Impedance: 50 Ω nominal


Length: 1.69 m
Width: 1.64 m
Height 2.02 m
Weight: 10.2 kg
Mounting: 22 mm diameter tube


pdficon small fastlinks for quick removal of the rear parts of the antenna.


Recommended Adapter: AA 9209.


pdficon small Datasheet STLP 9129

Radiation Pattern


Assembly of STLP Antennas
