Accessories

Details

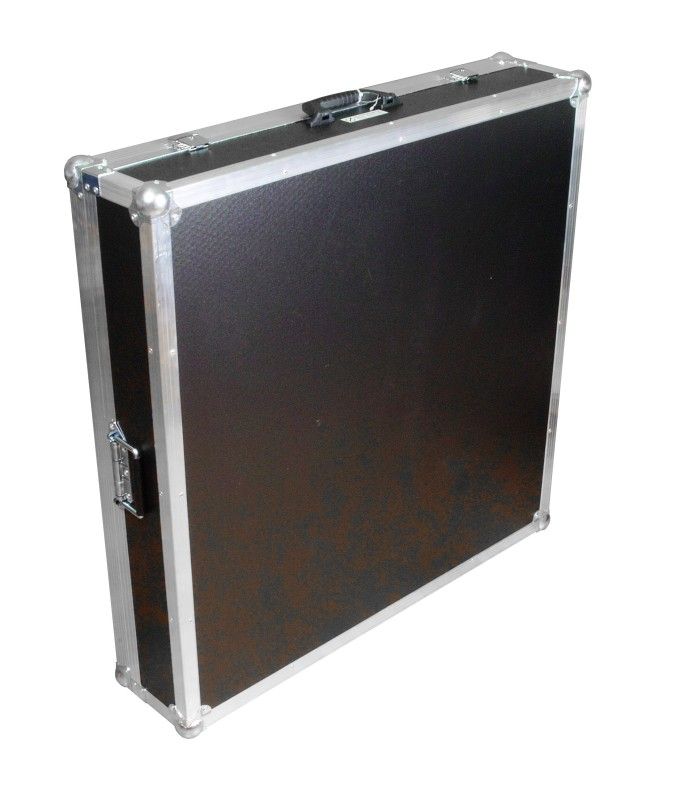

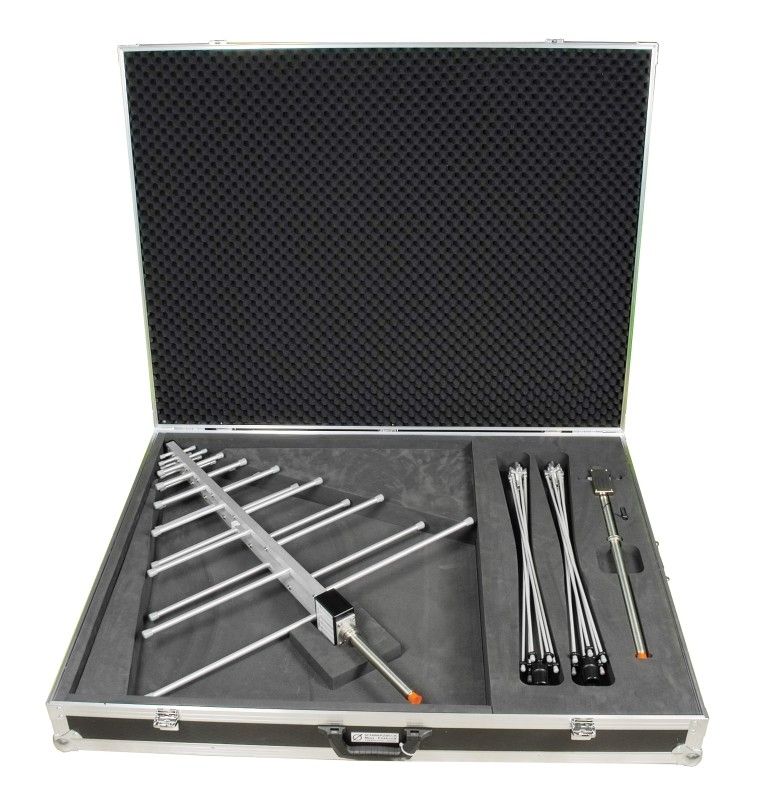

CCA

CCA product transport cases keep
your equipment safe, at any time. During
transport or for safe storage.

Individual for your product.

A combination of products in one case are possible.

More infomation about CCA and some examples are
shown in the Datasheet.

Datasheet CCA

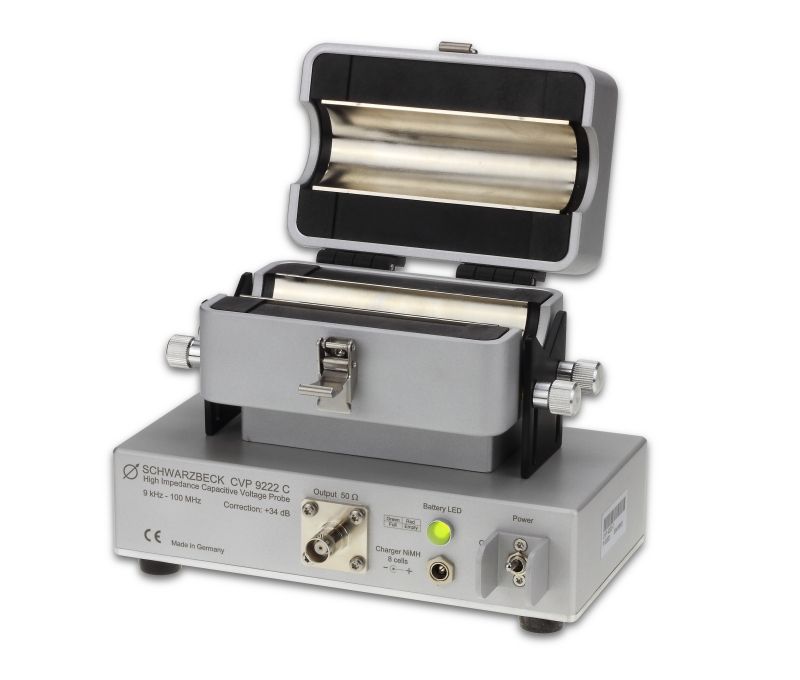

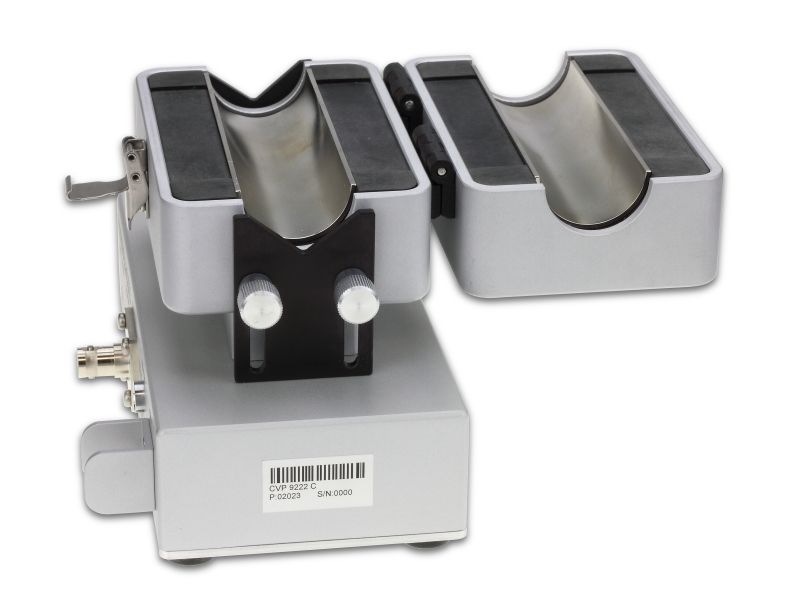

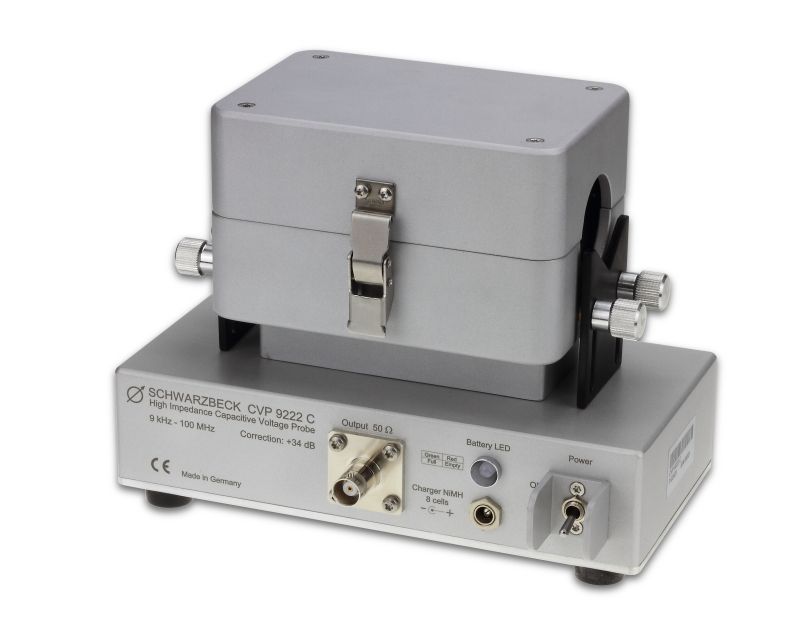

CVP 9222 C

High Impedance Capacitive Voltage Probe

acc. to CISPR 22

EN 55022 C 1.3

Frequency range: 9 kHz - 100 MHz

Datasheet CVP 9222 C

Options:

Option ACS 110:Charger ACS 110 for CVP 9222, CVP 9222 B and CVP 9222 C.

Option CAL 9222 B: Calibration Adapter for CVP 9222, CVP 9222 B and CVP 9222 C.

Datasheet CAL 9222 B

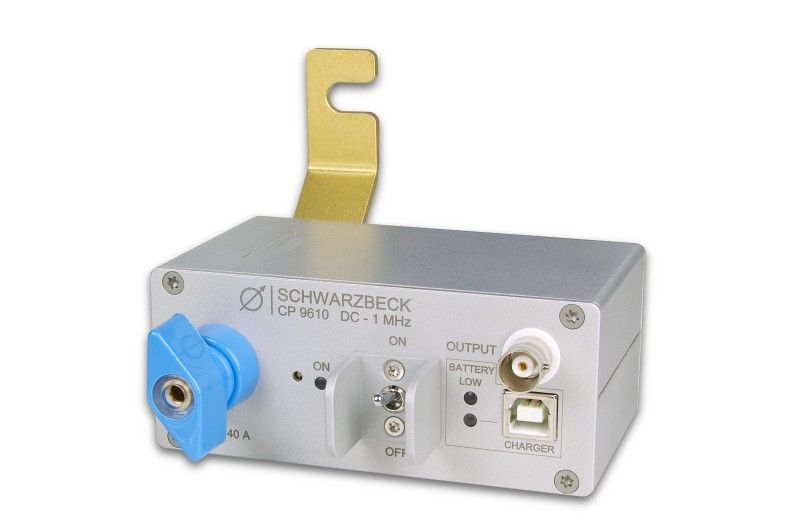

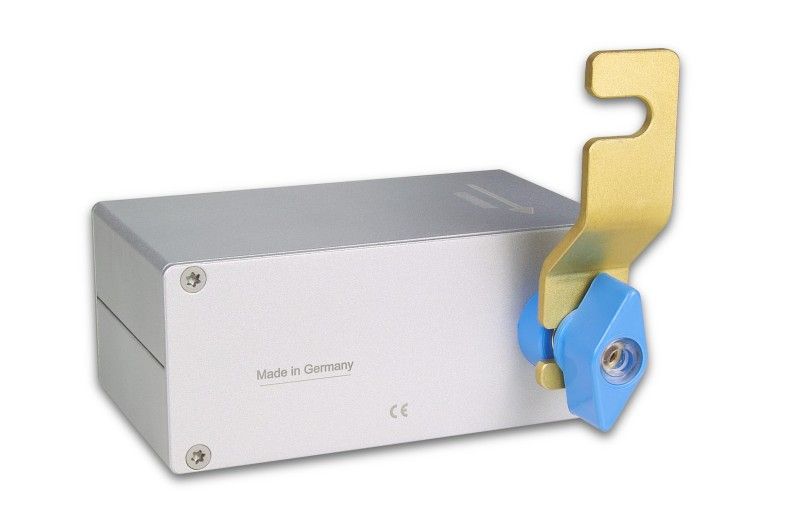

CP 9610

The current sensor CP 9610 can measure up to 40 A in a frequency range from DC – 1 MHz. It is galvanically isolated and can withstand a maximum voltage of 210 VPK / VDC. The internal resistance of the conductive path is less than 3 mΩ, providing low power loss. The hall transducer is temperature compensated and allows high accuracy over temperature.

	Frequency Range:	DC - 1 MHz
	Output Connector:	BNC (1 MΩ)
	Current Sensing Range:	-40 A - +40 A
	Nominal conversion factor:	50 mV/A
	Internal Conductor Resistance:	< 3 mΩ
	Typical Output Error:	±3 %
	Dimension:	105 x 44 x 115 mm
	Typical Operation Time:	24 h
	EuT Connector:	Wing terminals
	Power Supply:	3.7 V, 2.6 Ah Lithium Ion
	Weight:	430 g

Datasheet CP 9610

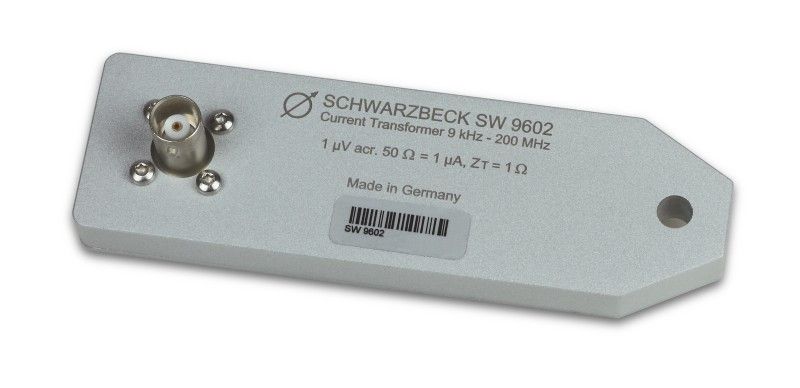

SW 9602

Current Transformer

shielded

0.01 - 200 MHz

Transfer Impedance: 1 Ohm for wires up to 6.5 mm

Datasheet SW 9602

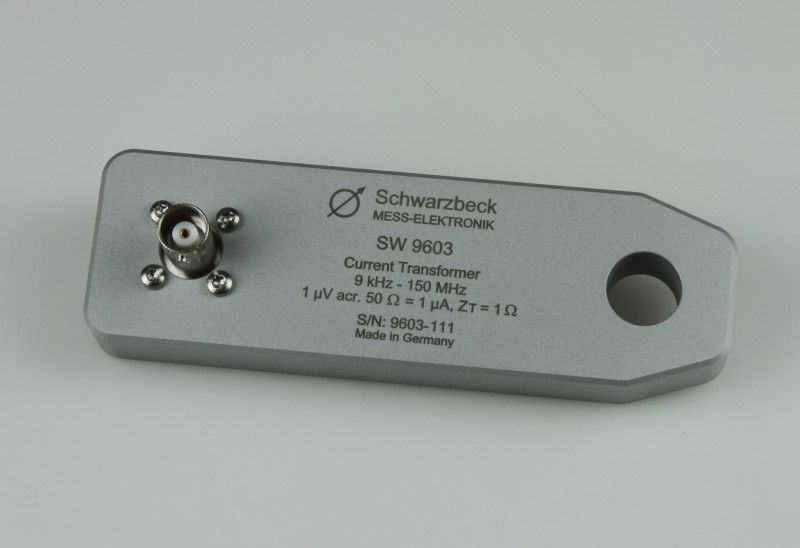

SW 9603

Current Transformer

shielded

9 kHz - 150 MHz

Transfer Impedance: 1 Ohm for wires up to 14 mm

Datasheet SW 9603

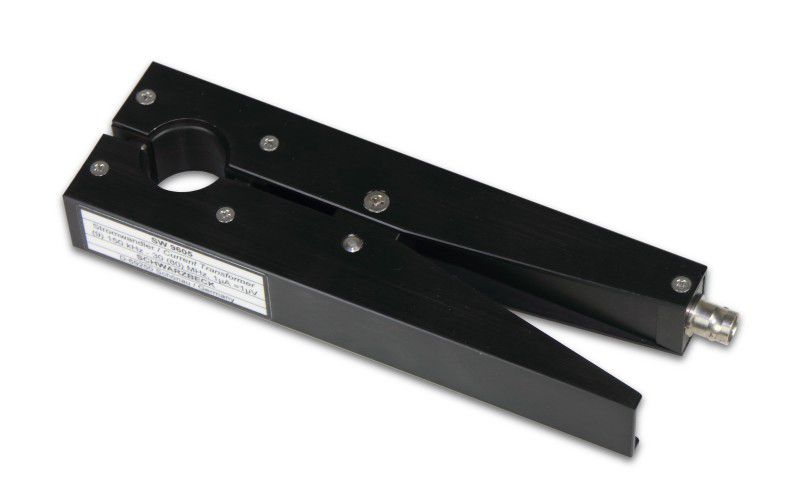

SW 9605

Current Transformer Clamp

CISPR 22

9 kHz - 80 MHz

Transfer Impedance: 1 Ohm for wires up to 23 mm

Datasheet SW 9605

SW 9606

Current injection clamp

for RF current injection into harnesses

up to 23 mm diamter

transducer 18 dB

Datasheet SW 9606

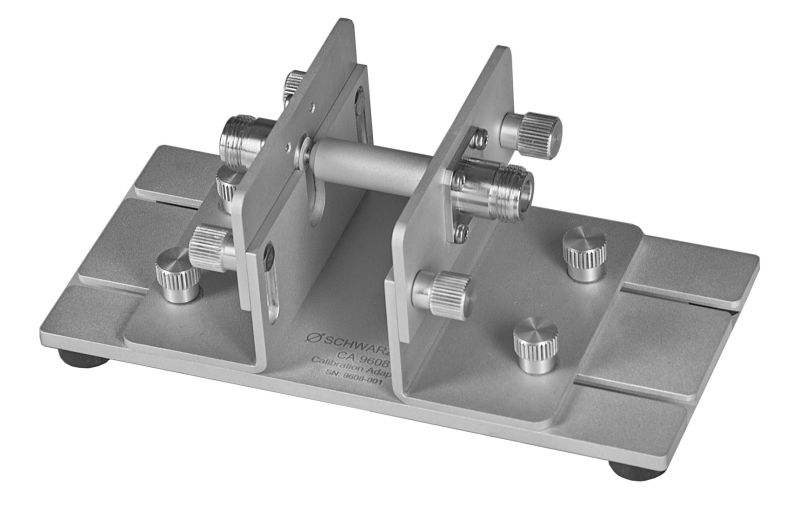

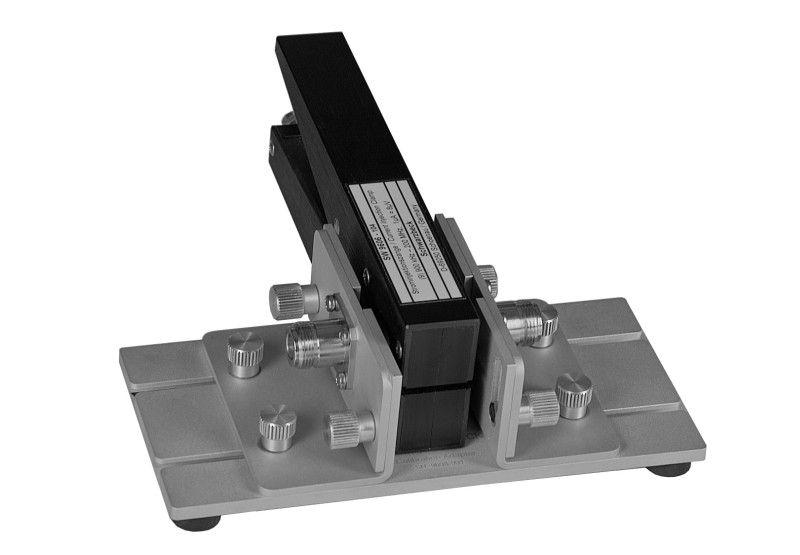

CA 9608

Universal calibration adapter for e.g. the following current clamps:

R&S ESV-Z1, Prodyn, IT-050-1

length and height settable

Datasheet CA 9608

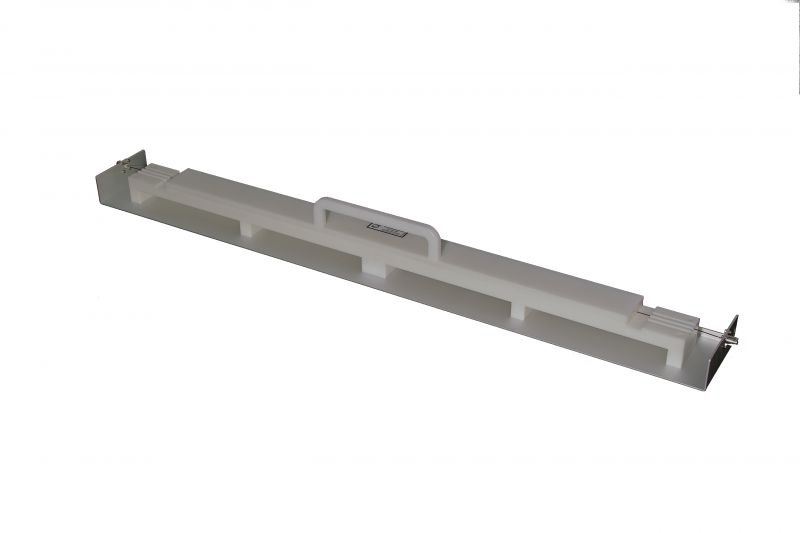

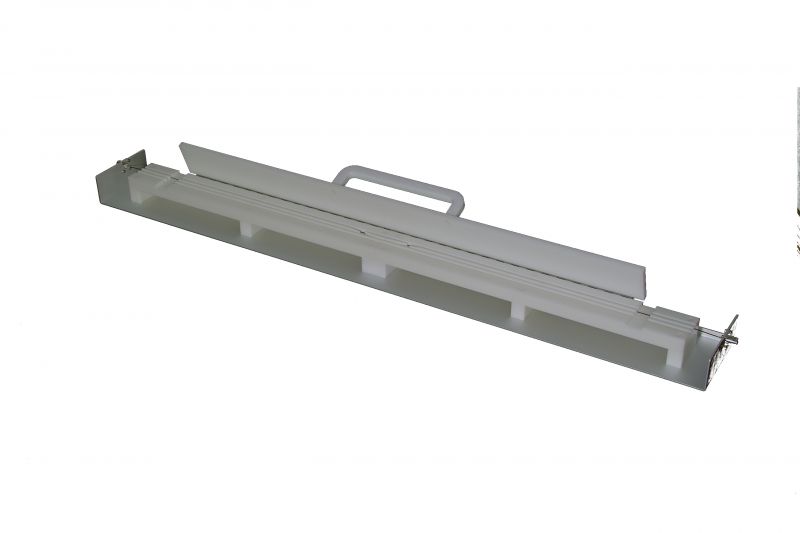

TF 130-150

Test Fixture for Ford RI 130/ 150 Per EMC-CS-2009

Datasheet TF 130-150

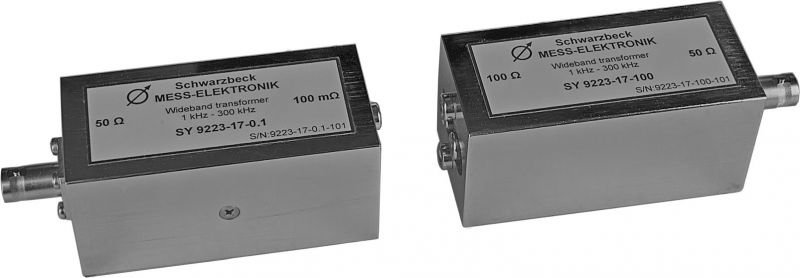

CISPR 17 Equipment

Transformers

fixtures and adapters to measure filters

ferrites and other passive components.

Detailed product list and data sheets on request.

Datasheet CISPR 17 Equipment

BD 9501

IEEE-488 Bus-Feed through for flange mounting

(shielded rooms) (other feed throughs on request)

Datasheet BD 9501

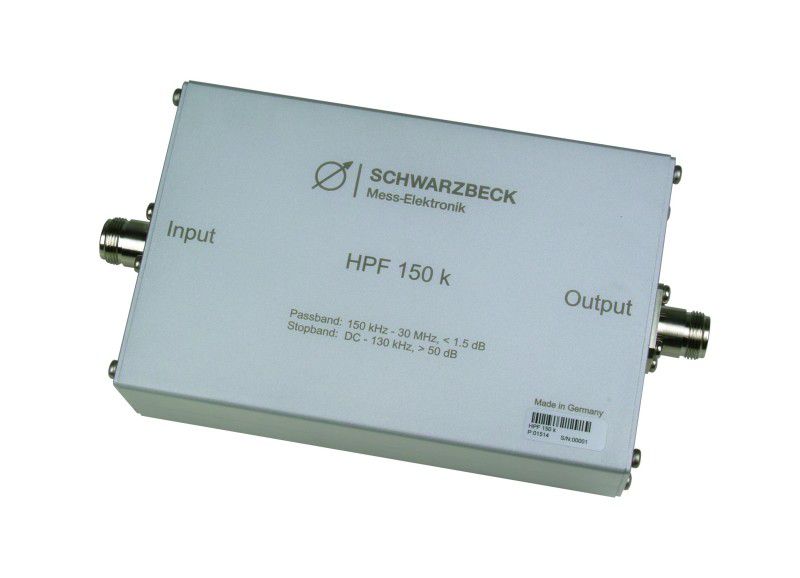

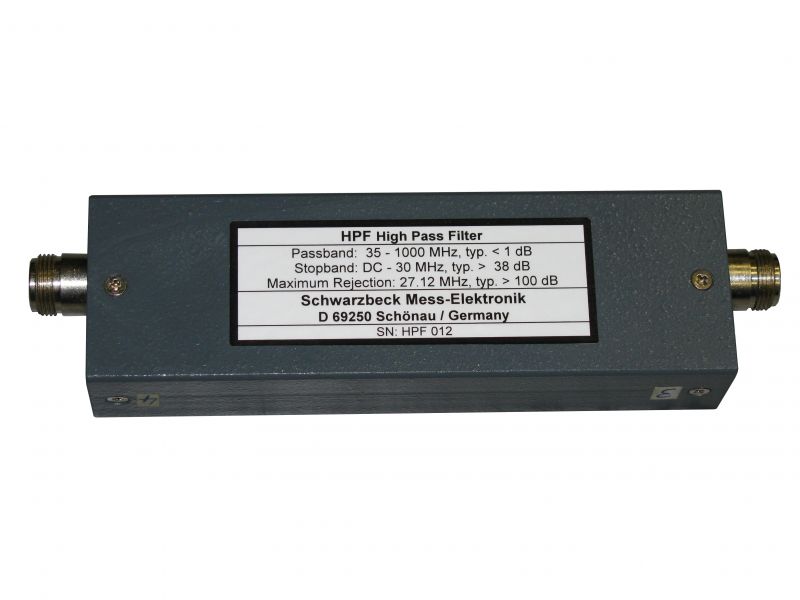

HPF 150 k - High Pass Filter

The HPF is a passive LC-Filter with female N-connectors in shielded metal housing with very steep slope according to CISPR 16-1-1.

The main application is the elimination of noise below 150 kHz for conducted interference voltage measurements. Particular features are high pulse load capacity and dielectric strength.

	Frequency range:	9 kHz - 30 MHz
	Fundamental frequency:	150 kHz
	Nominal impedance:	50 Ω
	Continuous power:	100 W
	Passband loss:	typ. < 2 dB
	Passband VSWR:	typ. < 2
	Stopband loss:	>50 dB @ ≤ 130 kHz
	Housing material:	Aluminium
	Housing dimensions: (with connector)	50 x 105 x 240 mm
	Weight:	860 g
	Connector:	2 x N female
