Striplines / TEM-Cells
- Details
TEMZ 5231

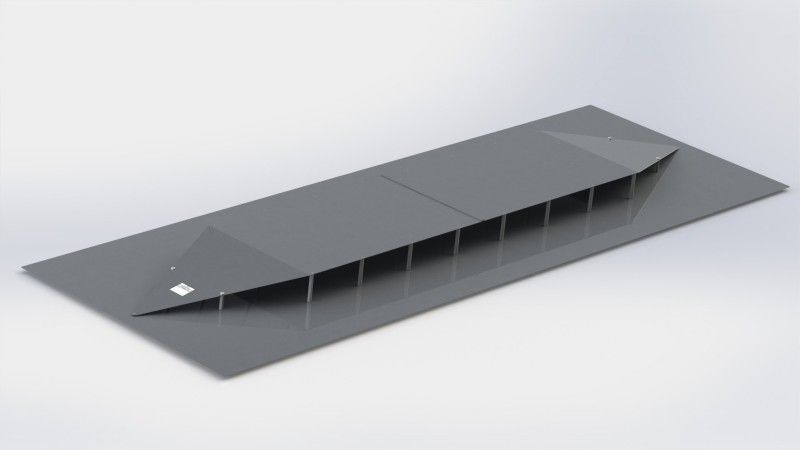

50 Ohm Stripline according to ISO 11452-5 for automotive testing septum with cylindrical rods 4.3 x 1.5 x 0.15 m N-connectors wooden base construction (top view, side view) and termination required
Options: Opt. Termination 150 W:
50 Ohm termination, N-jack,150 Watt, connecting cable for TEMZ 5231
Opt. Termination 500 W:
50 Ohm termination, N-jack, 500 Watt, connecting cable for TEMZ 5231
Opt. Foldaway:
Instead of cylindrical rods to hold the septum there will be side arms. The cell can be folded away vertically. A stainless steel construction with caster wheels supports the cell. Must be ordered together with TEMZ 5231, cannot be refitted.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||
| |
TEMZ 5232

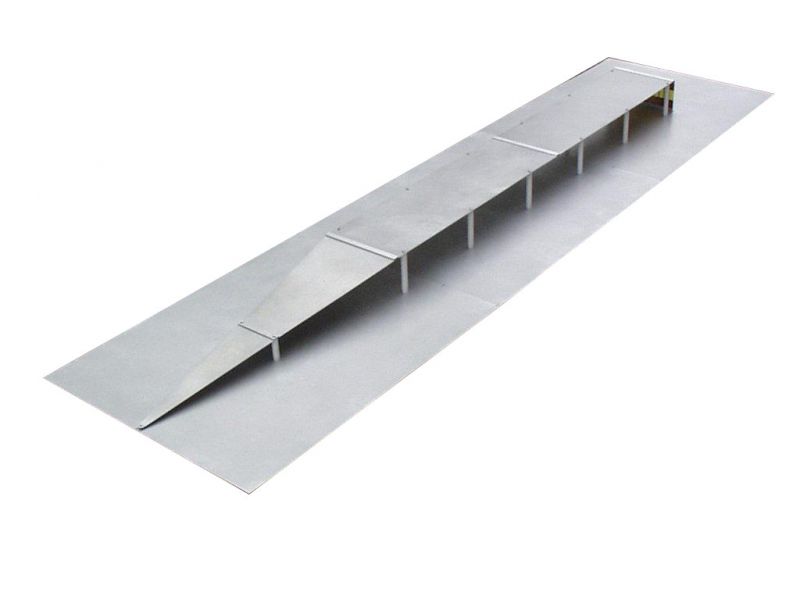

90 Ohm Stripline according to ISO 11452-5 for automotive testing 3.5 x 0.9 x 0.15 m N-connector built-in termination 90 Ohm 50 W wooden base construction required
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| |
TEMZ 5233

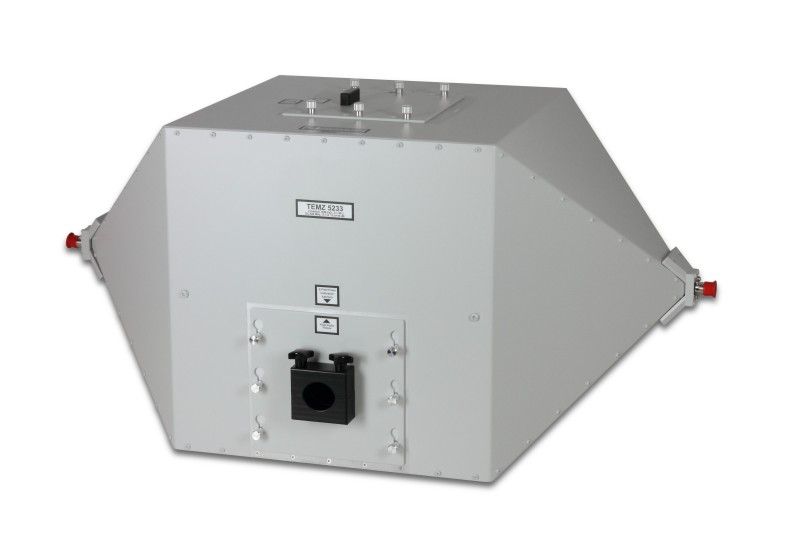

Closed, unsymmetrical 50 Ohm strip line DC - 420 (600) MHz Crawford TEM Cell for E- field probe and H-field probe calibration and for immunity testing ISO 11452-3, IEEE 1309 und EN 61000-4-20
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
NEW |

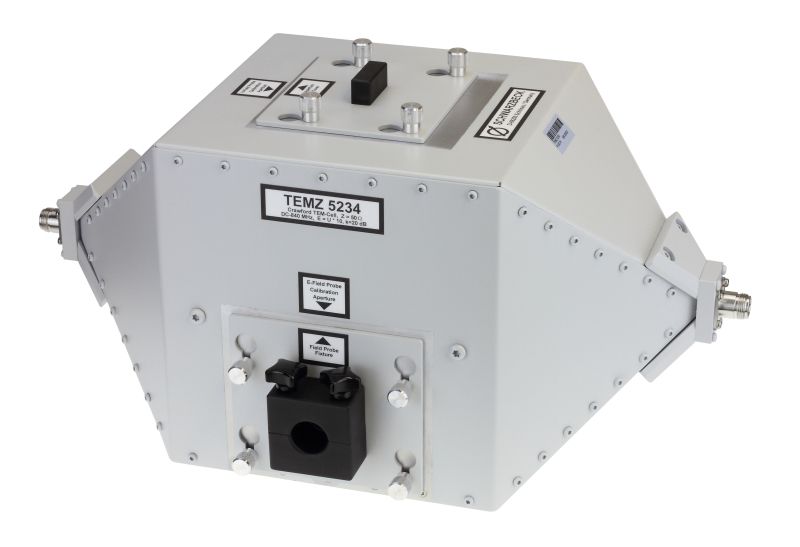

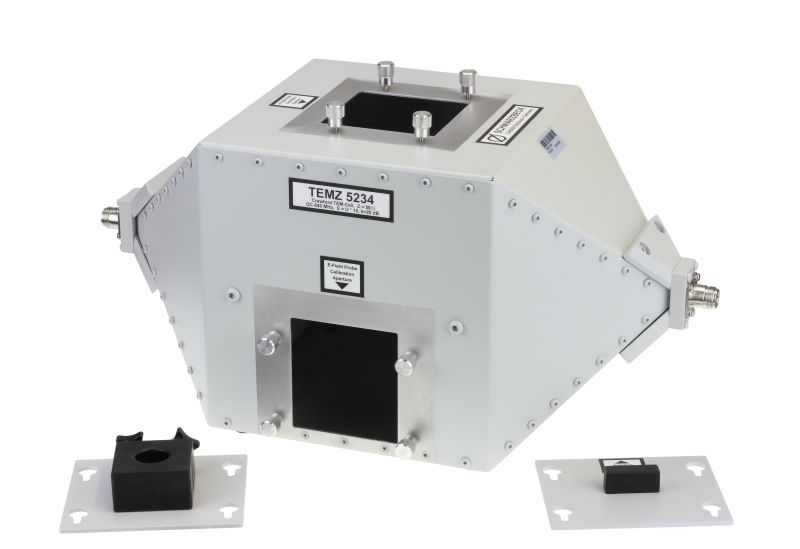

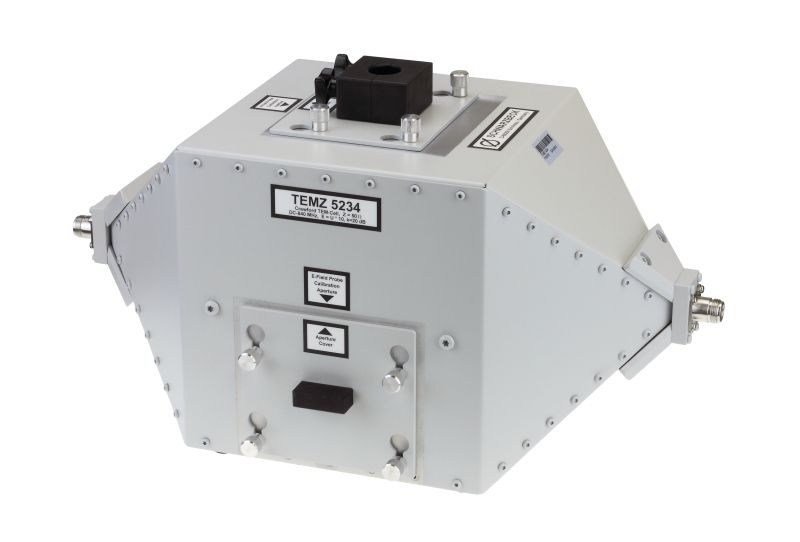

TEMZ 5234 - TEM Zelle
Closed, unsymmetrical 50 Ω stripline (also called Crawford-TEM-Cell or Transverse ElectroMagnetic cell) for E- and H-field probe calibration and immunity testing of components. The TEMZ 5233 complies to the requirements of ISO 11452-3, IEEE 1309 and EN 61000-4-20.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
