Dummy Lamps
- Details
| |

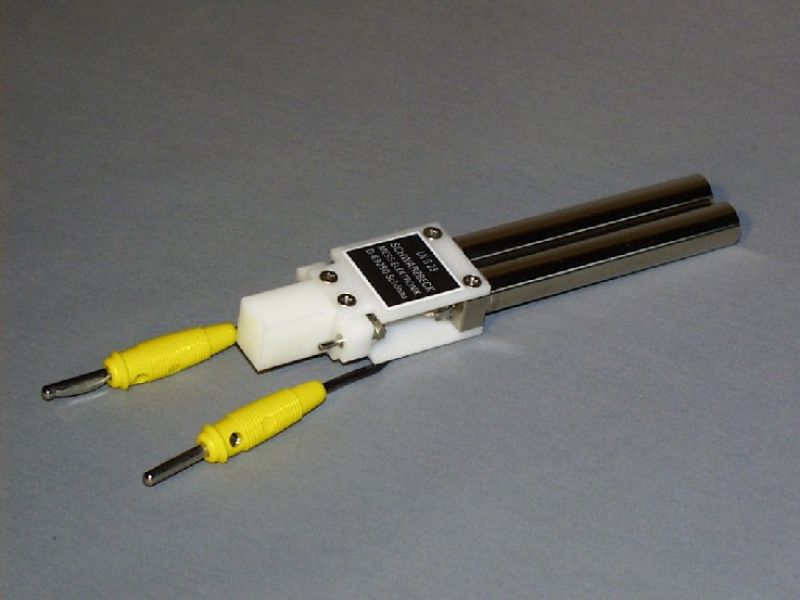

Single Capped Twin Tube Dummy Lamps with Socket G23 |
||
| LN G23 |
Socket LN G23 according to figure 4 e CISPR 15 socket length 47 mm tube sets of the RS G23 / xxx series required
|
||
| RS G23 / 85 |
Tube set for LN G23 max. length of lamp acc. to IEC 85 mm length of tube 38 mm Tube diameter 13 mm 5 W
|
||
| RS G23 / 115 |
Tube set for LN G23 max. length of lamp acc. to IEC 115 mm length of tube 68 mm Tube diameter 13 mm 7 W
|
||
| RS G23 / 145 |
Tube set for LN G23 max. length of lamp acc. to IEC 145 mm length of tube 98 mm Tube diameter 13 mm 9 W
|
||
| RS G23 / 215 |
Tube set for LN G23 max. length of lamp acc. to IEC 215 mm length of tube 168 mm Tube diameter 13 mm 11 W
|
||
| |

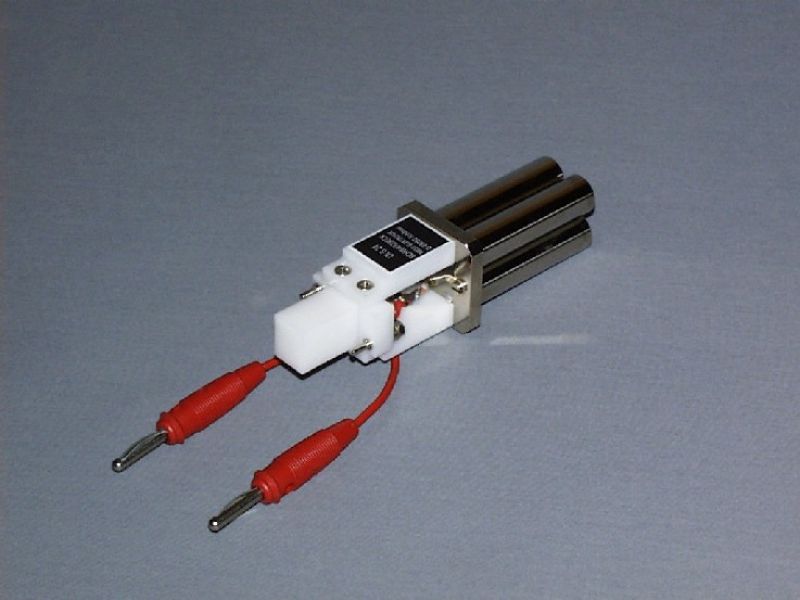

Single Capped Quadruple Tube Dummy Lamps with Socket G24 |
||
| LN G24 |
Socket LN G24 according to figure 4 f CISPR 15 socket length 45 mm tube sets of the RS G24 / xxx series required
|
||
| RS G24 / 95 |
Tube set for LN G24 max. length of lamp acc. to IEC 95 mm length of tube 50 mm Tube diameter 13 mm 10 W
|
||
| RS G24 / 130 |
Tube set for LN G24 max. length of lamp acc. to IEC 130 mm length of tube 85 mm Tube diameter 13 mm 13 W
|
||
| RS G24 / 150 |
Tube set for LN G24 max. length of lamp acc. to IEC 150 mm length of tube 105 mm Tube diameter 13 mm 18 W
|
||
| RS G24 / 170 |
Tube set for LN G24 max. length of lamp acc. to IEC 170 mm length of tube 125 mm Tube diameter 13 mm 26 W
|
||
|

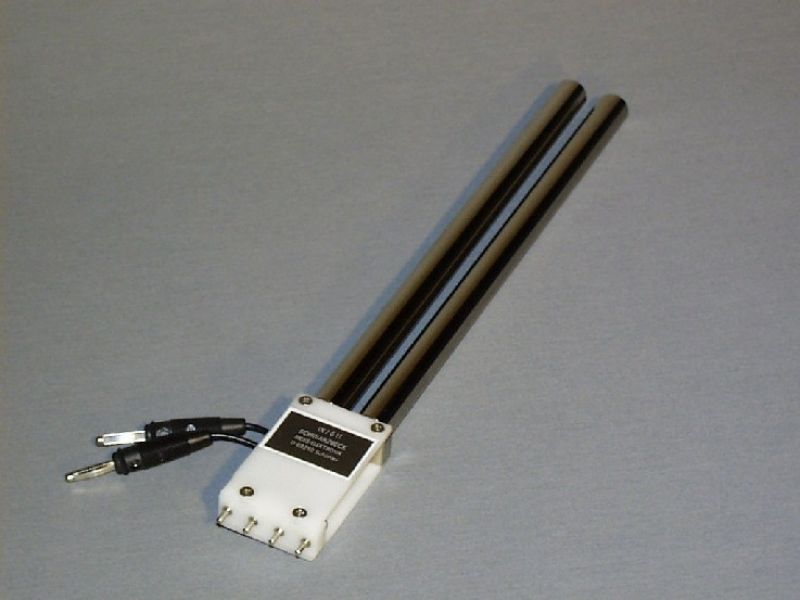

Single Capped Twin Tube Dummy Lamps with Socket 2G11 |
|||
| LN 2G11 |
Socket LN 2G11 according to figure 4 d CISPR 15 socket length 67 mm tube sets of the RS 2G11 / xxx series required
|
||
| RS 2G11 / 225 |
Tube set for LN 2G11 max. length of lamp acc. to IEC 225 mm length of tube 158 mm Tube diameter 15 mm 18 W
|
||
| RS 2G11 / 320 |
Tube set for LN 2G11 max. length of lamp acc. to IEC 320 mm length of tube 253 mm Tube diameter 15 mm 24 W
|
||
| RS 2G11 / 415 |
Tube set for LN 2G11 max. length of lamp acc. to IEC 415 mm length of tube 348 mm Tube diameter 15 mm 36 W
|
||
| RS 2G11 / 535 |
Tube set for LN 2G11 max. length of lamp acc. to IEC 535 mm length of tube 468 mm Tube diameter 15 mm 55 W
|
||
|

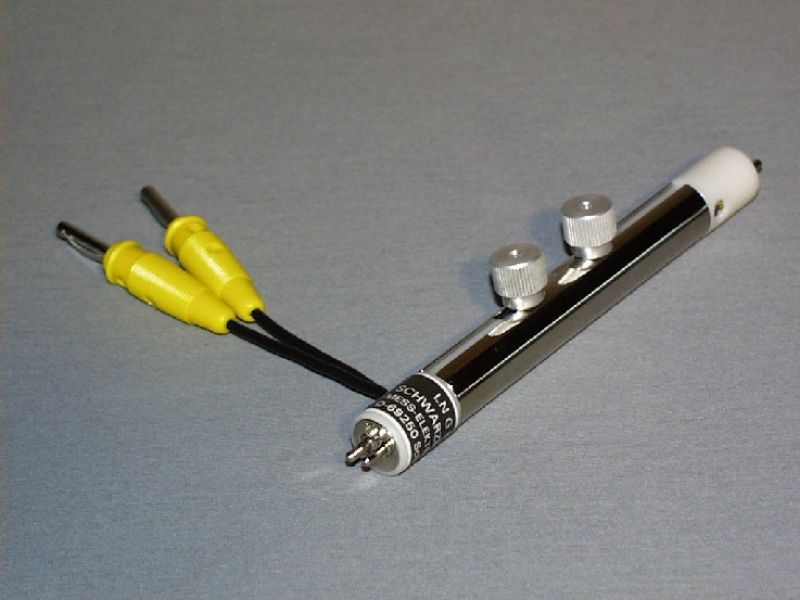

Linear Dummy Lamps 15 mm Diameter with Socket G5 |
|||
| LN G5 |
Pair of sockets LN G5 according to figure 4 c CISPR 15 socket length 20 mm each tube sets of the RS G5 / xxx series required
|
||
| RS G5 / 136 |
Tube set for LN G5 max. length of lamp acc. to IEC 136 mm length of tube 96 mm Tube diameter 15 mm 4 W
|
||
| RS G5 / 212 |
Tube set for LN G5 max. length of lamp acc. to IEC 212 mm length of tube 172 mm Tube diameter 15 mm 6 W
|
||
| RS G5 / 288 |
Tube set for LN G5 max. length of lamp acc. to IEC 288 mm length of tube 248 mm Tube diameter 15 mm 8 W
|
||
| RS G5 / 517 |
Tube set for LN G5 max. length of lamp acc. to IEC 517 mm length of tube 477 mm Tube diameter 15 mm 13 W
|
||
| RS G5 / 549 |
Tube set for LN G5 max. length of lamp acc. to IEC 549 mm length of tube 509 mm Tube diameter 15 mm 14 W
|
||
| RS G5 / 849 |
Tube set for LN G5 max. length of lamp acc. to IEC 849 mm length of tube 809 mm Tube diameter 15 mm 21 W
|
||
| RS G5 / 1449 |
Tube set for LN G5 max. length of lamp acc. to IEC 1449 mm length of tube 1409 mm Tube diameter 15 mm 35 W
|
||
|

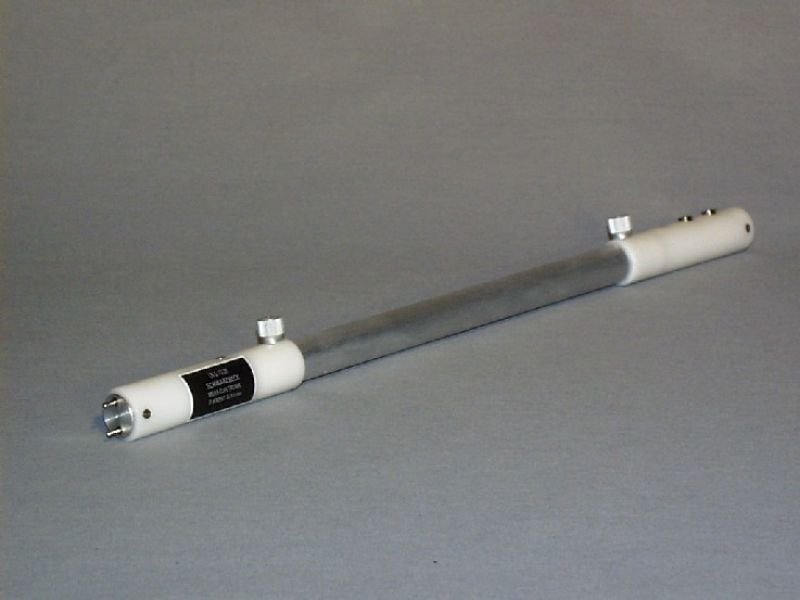

Linear Dummy Lamps 20 mm Diameter with Socket G13 / 25 |
|||
| LN G13 / 25 |
Pair of sockets LN G13 according to figure 4 a CISPR 15 socket length 75 mm each tube sets of the RS G13 / 25 / xxx series required
|
||
| RS G13 / 25 / 438 |
Tube set for LN G13 / 25 max. length of lamp acc. to IEC 438 mm length of tube 288 mm Tube diameter 20 mm 15 W
|
||
| RS G13 / 25 / 590 |
Tube set for LN G13 / 25 max. length of lamp acc. to IEC 590 mm length of tube 440 mm Tube diameter 20 mm 18 W
|
||
| RS G13 / 25 / 720 |
Tube set for LN G13 / 25 max. length of lamp acc. to IEC 720 mm length of tube 570 mm Tube diameter 20 mm 16 W
|
||
| RS G13 / 25 / 895 |
Tube set for LN G13 / 25 max. length of lamp acc. to IEC 895 mm length of tube 745 mm Tube diameter 20 mm 30 W
|
||
| RS G13 / 25 / 970 |
Tube set for LN G13 / 25 max. length of lamp acc. to IEC 970 mm length of tube 820 mm Tube diameter 20 mm 36 W
|
||
| RS G13 / 25 / 1047 |
Tube set for LN G13 / 25 max. length of lamp acc. to IEC 1047 mm length of tube 897 mm Tube diameter 20 mm 38 W
|
||
| RS G13 / 25 / 1200 |
Tube set for LN G13 / 25 max. length of lamp acc. to IEC 1200 mm length of tube 1050 mm Tube diameter 20 mm 36 W
|
||
| RS G13 / 25 / 1500 |
Tube set for LN G13 / 25 max. length of lamp acc. to IEC 1500 mm length of tube 1350 mm Tube diameter 20 mm 58 W
|
||
|

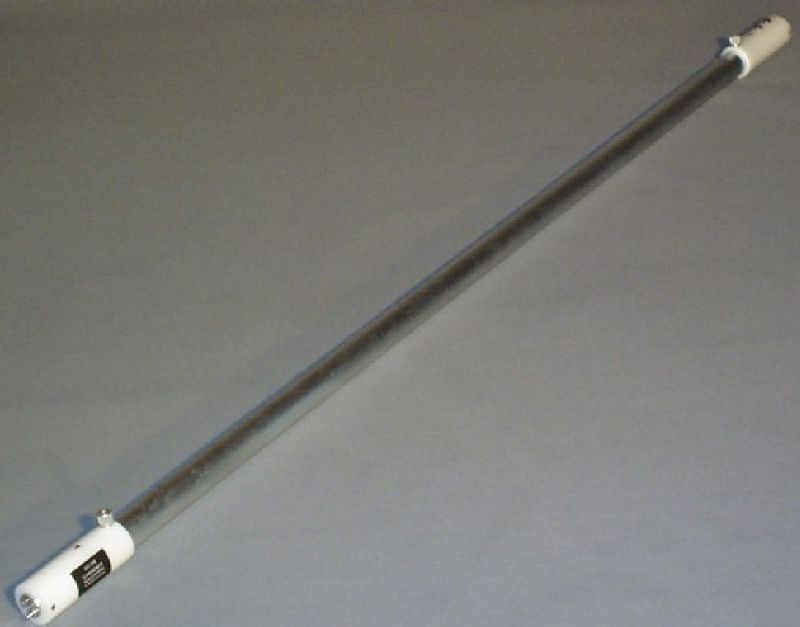

Linear dummy lamps 28 mm diameter with socket G13 / 38 |
|||
| LN G13 / 38 |
Pair of sockets LN G13 according to figure 4 a CISPR 15 socket length 75 mm each tube sets of the RS G13 / 38 / xxx series required
|
||
| RS G13 / 38 / 590 |
Tube set for LN G13 / 38 max. length of lamp acc. to IEC 590 mm length of tube 440 mm Tube diameter 28 mm 20 W
|
||
| RS G13 / 38 / 970 |
Tube set for LN G13 / 38 max. length of lamp acc. to IEC 970 mm length of tube 820 mm Tube diameter 28 mm 25 W
|
||
| RS G13 / 38 / 1200 |
Tube set for LN G13 / 38 max. length of lamp acc. to IEC 1200 mm length of tube 1050 mm Tube diameter 28 mm 115 W
|
||
| RS G13 / 38 / 1500 |
Tube set for LN G13 / 38 max. length of lamp acc. to IEC 1500 mm length of tube 1350 mm Tube diameter 28 mm 140 W
|
||
| RS G13 / 38 / 1800 |
Tube set for LN G13 / 38 max. length of lamp acc. to IEC 1800 mm length of tube 1650 mm Tube diameter 28 mm 160 W
|
||
| RS G13 / 38 / 2400 |
Tube set for LN G13 / 38 max. length of lamp acc. to IEC 2400 mm length of tube 2250 mm Tube diameter 28 mm 125 W
|
||
|
Single Capped Twin Tube Dummy Lamps with Socket 2G7 |
|||
| LN 2G7 |
Socket LN 2G7 socket length 47 mm tube sets of the RS 2G7 / xxx series required
|
||
| RS 2G7 / 85 |
Tube set for LN 2G7 max. length of lamp acc. to IEC 85 mm length of tube 38 mm Tube diameter 13 mm 5 W
|
||
| RS 2G7 / 115 |
Tube set for LN 2G7 max. length of lamp acc. to IEC 115 mm length of tube 68 mm Tube diameter 13 mm 7 W
|
||
| RS 2G7 / 145 |
Tube set for LN 2G7 max. length of lamp acc. to IEC 145 mm length of tube 98 mm Tube diameter 13 mm 9 W
|
||
| RS 2G7 / 215 |
Tube set for LN 2G7 max. length of lamp acc. to IEC 215 mm length of tube 168 mm Tube diameter 13 mm 11 W
|
||
|
U-shape Tube Dummy Lamps with Socket 2G13 |
|||
| LN 2G13 |
Socket LN 2G13 socket length 75 mm tube sets of the RS 2G13 / xxx series required
|
||
| RS 2G13 / 310 |
Tube set for LN 2G13 max. length of lamp acc. to IEC 310 mm length of tube 235 mm Tube diameter 20 mm 20 W
|
||
| RS 2G13 / 607 |
Tube set for LN 2G13 max. length of lamp acc. to IEC 607 mm length of tube 532 mm Tube diameter 20 mm 40 W
|
||
| RS 2G13 / 765 |
Tube set for LN 2G13 max. length of lamp acc. to IEC 765 mm length of tube 690 mm Tube diameter 20 mm 65 W
|
||
|

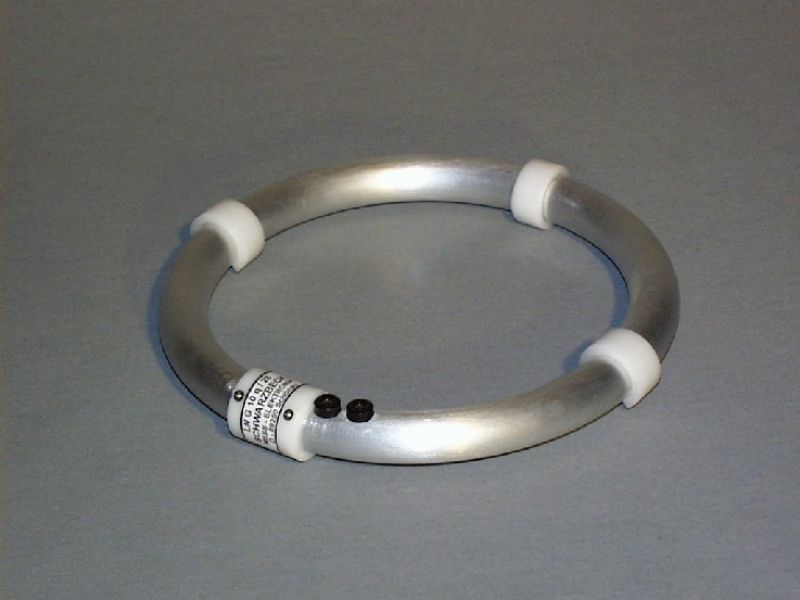

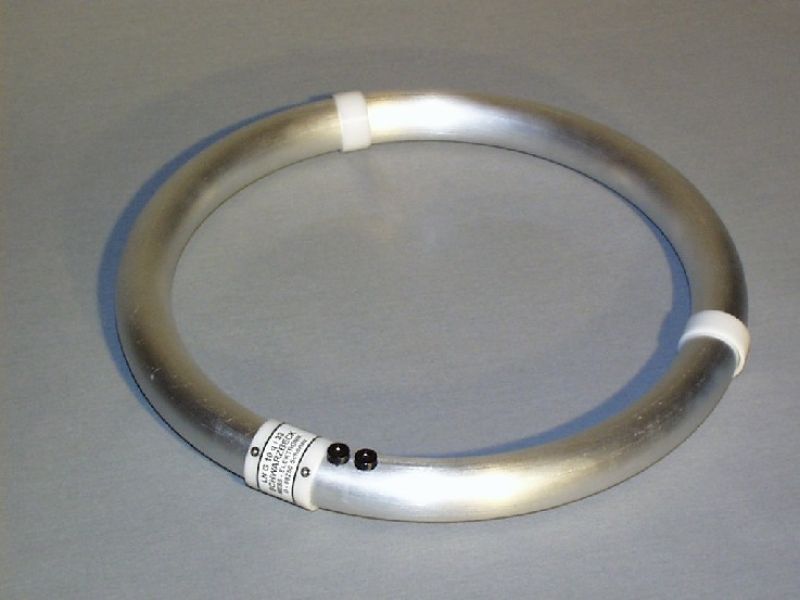

Circular dummy lamps |
|||
| LN G10q / 28 / 216 |
Complete circular dummy lamp according to figure 4 b CISPR 15 max. diameter of lamp acc. to IEC 216 mm Tube diameter 20 mm 22 W
|
||
| LN G10q / 32 / 311 |
Complete circular dummy lamp according to figure 4 b CISPR 15 max. diameter of lamp acc. to IEC 311 mm Tube diameter 28 mm 32 W
|
||
| LN G10q / 32 / 413 |
Complete circular dummy lamp according to figure 4 b CISPR 15 max. diameter of lamp acc. to IEC 413 mm Tube diameter 28 mm 40 W
|
||
|

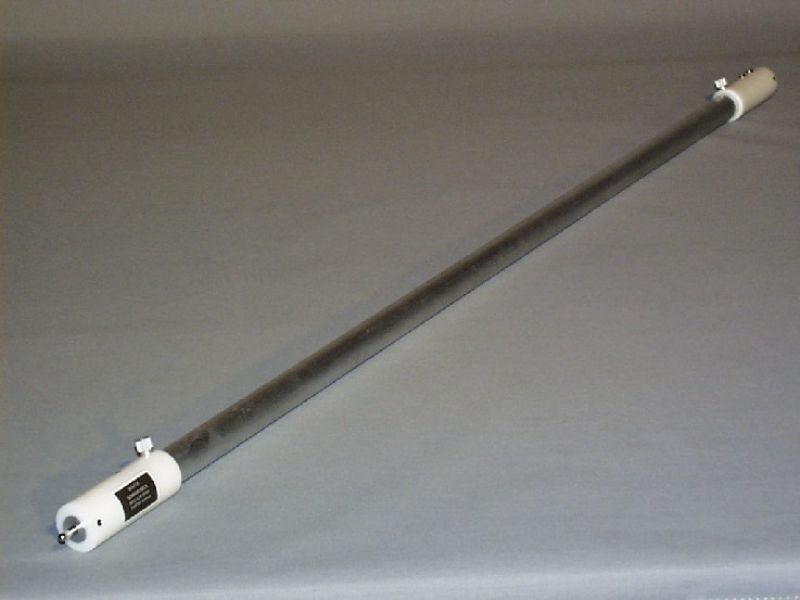

Single Pin Linear Dummy Lamps with Socket Fa6 |
|||
| LN Fa6 |
Pair of sockets LN Fa6 socket length 75 mm each tube sets of the RS Fa6 / xxx series required
|
||
| RS Fa6 / 1200 |
Tube set for LN Fa6 max. length of lamp acc. to IEC 1200 mm length of tube 1050 mm Tube diameter 28 mm 32 W
|
||
|
|||
| RS Fa6 / 1500 |
Tube set for LN Fa6 max. length of lamp acc. to IEC 1500 mm length of tube 1350 mm Tube diameter 28 mm 50 W
|
||
|
Related Equipment |
|||
| |

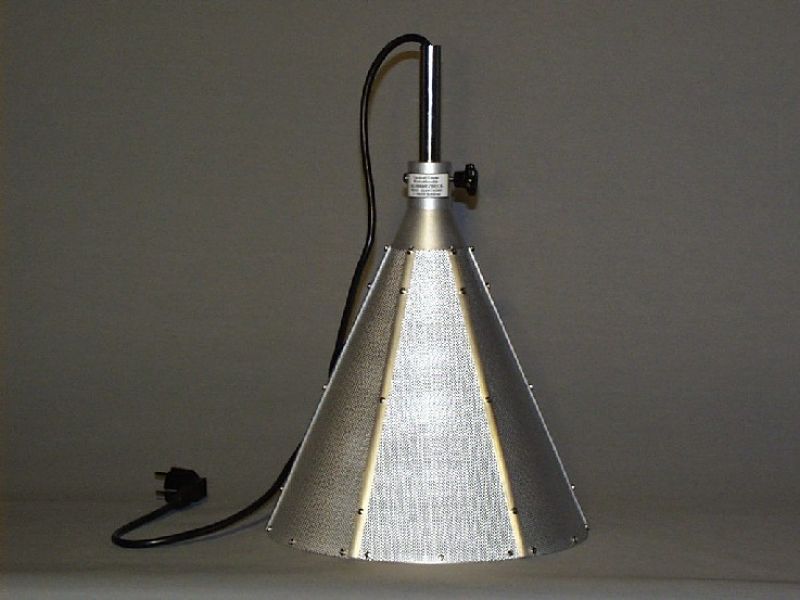

Conical Cover |
Test fixture for energy saving lamps with E27 socket according to Figure A.2 CISPR 15
|
|
| Conical Cover Option E14 |
Additional adapter E27-E14 to insert E14 lamps into the conical cover
|
||
| Conical Cover Option B22d |
Additional adapter E27-B22d to insert B22d lamps (common in Great Britain) into the conical cover.
|
||
| Conical Cover Option GU10 |
Additional adapter E27-GU10 to insert GU10 lamps into the conical cover.
|
||
