A LISN Line Impedance Stabilization Networks / AMN Artificial Mains Network

  • supplies the neccessary mains voltage (AC or DC) and current for the Equipment under Test (EuT).
  • couples interference voltage generated by the EuT and supplies it to the receiver.
  • provides well defined RF-impedance to the Equipment under Test (EuT)
  • keeps away unwanted disturbance coming from mains (filter)
  • protects the mains from unwanted disturbance voltage generated by the EuT

.

 LISN Messaufbau




Figure 1: Measurement setup conducted disturbances



We can distinguish three types of LISN: V-, T- and Delta-LISN

Figure 2 shows the voltage relationship of a two-line-system with separate ground.

The V-LISN measures the unsymmetric disturbance voltage between the two lines L1 and ground or L2 and ground respectively. V-LISN are also called V-ANM (Artificial Mains Network). The V-LISN is by far the most commonly used LISN.

There are two types of V-LISN with different impedances. The V-LISN with a 5μH inductance (CISPR 16-1-2, CISPR 25, ISO 7637, DO160) are normally used to measure equipment for vehicles, boats and aircrafts connected to onboards mains with DC or 400 Hz. The other Type of V-LISN with 50 µH according to CISPR 16-1-2, MIL STD 461 and ANSI C63.4 is intended to operate at mains frequencies of 50 Hz or 60 Hz.

The T-ISN (Figure 2 right) measures the asymmetric disturbance voltage (common mode voltage) and provides it to an EMI Receiver. T-ISN is normally used for measuring telecommunication and data transmission equipment connected to symmetrical lines as e.g. twisted pairs..

 Schwarzbeck LISN-Topology

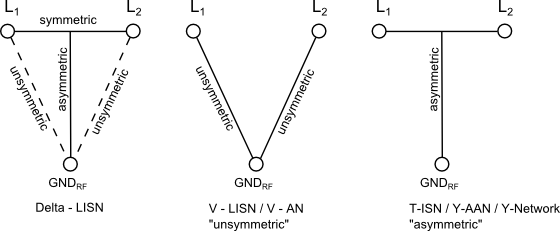

Figure 2: LISN / AN Topology

 Schwarzbeck LISN overview

Type

Datasheet

Topology

Impedance

Current max.

Paths

Options

CISPR 16-1-2 socket

NSLK 8117

pdficon small

V-LISN

(50 µH + 5 Ω) || 50 Ω

2 x 10 A

2



NSLK 8127

pdficon small

V-LISN

(50 µH + 5 Ω) || 50 Ω

2 x 16 A

2

RC, PLC

NSLK 8126

pdficon small

V-LISN

(50 µH + 5 Ω) || 50 Ω

2 x 16 A Schuko
4 x 16 A CEKON

4

RC

NSLK 8128

V-LISN

(50 µH + 5 Ω) || 50 Ω

2 x 16 A Schuko and
4 x 32 A CEKON

4

RC

NSLK 8163

V-LISN

(50 µH + 5 Ω) || 50 Ω

4 x 64 A CEKON

4

RC

CISPR 16-1-2 Wing Terminals

NNLK 8121

V-LISN

(50 µH + 5 Ω) || 50 Ω

4 x 50 (100) A

 4

RC, Hochstrom, 400/700V, Lüfter

NNLK 8122

V-LISN

(50 µH + 5 Ω) || 50 Ω

2 x 50 A

 2



NNLK 8129

V-LISN

50 µH || 50 Ω

4 x 200 (300) A

 4

RC, 400/700 V, Lüfter

NNLK 8129-2 HV

V-LISN

50 µH || 50 Ω

2 x 200 (300) A

2

RC,TC

NNLK 8130

V-LISN

50 µH || 50 Ω

4 x 400 (500) A

 4

RC

NNLK 8140

V-LISN

50 µH || 50 Ω

1 x 800 (1000) A

single



Automotive

NNHV 8123

V-LISN

5µH || 50 Ω

70 (100) A

single

NNHV 8123-200

V-LISN

5µH || 50 Ω

200 A

single



NNHV 8123-400

V-LISN

5µH || 50 Ω

400 A

single



NNHV 8123-400R

V-LISN

(5µH + 1 Ω) || 50 Ω

400 A

single

NNHV 8123-800

 pdficon small

V-LISN

5µH || 50 Ω

800 A

single

NNBM 8124

V-LISN

(5µH + 1 Ω) || 50 Ω

70 (100) A

single

N-connector

NNBM 8124-200

V-LISN

(5µH + 1 Ω) || 50 Ω

200 A

single

N-connector

NNBM 8124-400

V-LISN

(5µH + 1 Ω) || 50 Ω

400 A

single

N-connector

NNBM 8124-800

V-LISN

(5µH + 1 Ω) || 50 Ω

800 A

single

N-connector

NNBM 8126 A 890

V-LISN

5 µH || 50 Ω

70 (100) A

single

DO-160

NNBM DO160-1500

V-LISN

5 µH || 50 Ω

200 (280) A

single

BAN 8508





8 A (DC)

single



BAN 8530





30 A (DC)

single



MIL

NNBL 8225

V-LISN

(50 µH + 5 Ω) || 50 Ω

20 A

single



NNBL 8226

V-LISN

(50 µH + 5 Ω) || 50 Ω

70 (100) A

single



NNBL 8226-HV

V-LISN

(50 µH + 5 Ω) || 50 Ω

70 (100) A

single



NNBL 8226-2

V-LISN

(50 µH + 5 Ω) || 50 Ω

70 (100) A

2



NNBL 8229-HV

V-LISN

(50 µH + 5 Ω) || 50 Ω

200 A

single



NNBL 8230

V-LISN

(50 µH + 5 Ω) || 50 Ω

300 A

single



NNBL 8240

V-LISN

(50 µH + 5 Ω) || 50 Ω

800 (1000) A

single



T-ISN

NTFM 8131

T-ISN

150 Ω ± 10%

3 A (AC)

 2



NTFM 8158

T-ISN

150 Ω ± 20 Ω

600 mA DC (pair)

 2



CAT5 8158

T-ISN

150 Ω ± 20 Ω

600 mA DC (pair)

 2



CAT3 8158

T-ISN

150 Ω ± 20 Ω

600 mA DC (pair)

 2



ISN S8

T-ISN

150 Ω ±20 Ω
150 Ω + 60 Ω /-45 Ω

1 A (DC)

 8



ISN S1

T-ISN

150 Ω ±20 Ω
150 Ω + 60 Ω /-45 Ω

1 A (DC)

single



Special - LISN

Pilot ISN



150 Ω ±20 Ω

1.4 A DC

2



ECSS LISN1



(1.5 µH) || 50 Ω

10 A

2



ECSS LISN 2



(2 µH) || 50 Ω

10 A

2



ECSS LISN 2 - 75A



(2 µH) || 50 Ω

75 A

2



ECSS LISN 3



(0.7 µH) || 50 Ω

10 A

2



NPLC 8500

V-LISN

1 Ω

16 A

single



PVDC 8300

PV-LISN
Universal

150 Ω common
100 Ω differental

50 A (100 A with opt. fans)

 2

Fans

PVDC 8301

PV-LISN
Universal

150 Ω common
100 Ω differental

200 A

 2



TEMP 8400

Tempest-

V-LISN

1.4 kΩ

16 A

 2

TEMP 8401
