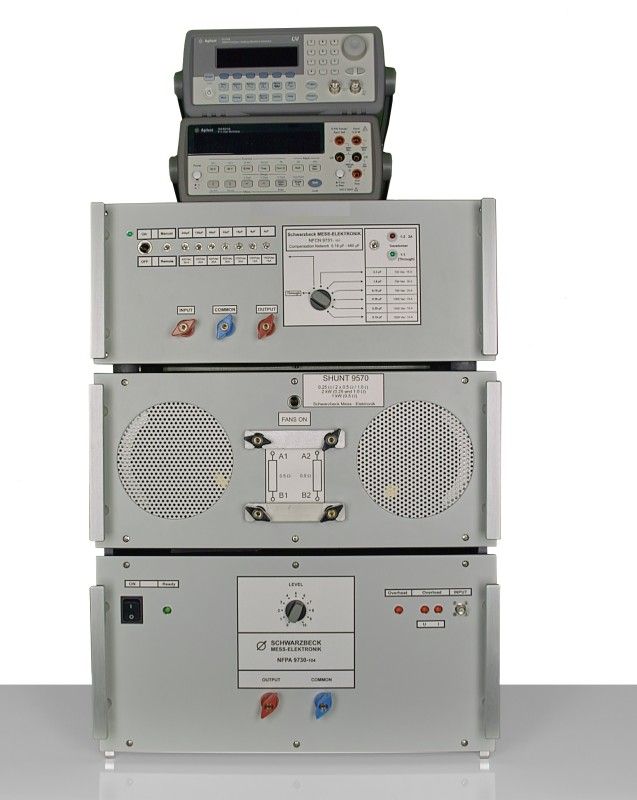

MagTest System



The MagTest System is a system to generate magnetic fields and to perform tests regarding the susceptibility against magnetic fields in accordance with MIL-STD-461E (RS101), MIL461F, ISO 11452-8, EN 55103-1/2, EN 61000-4-8, SAE J1113-22, SAE J551-17 and other military or civil standards.

Most automotive manufacturers have derived their own standards, among them:

Peugeot Citroen B217110, Renault 36 - 00 - 808, Ford ES-XW7T- 1A278-AC and many others.

A further application is the calibration of magnetic loop antennas or sensors.

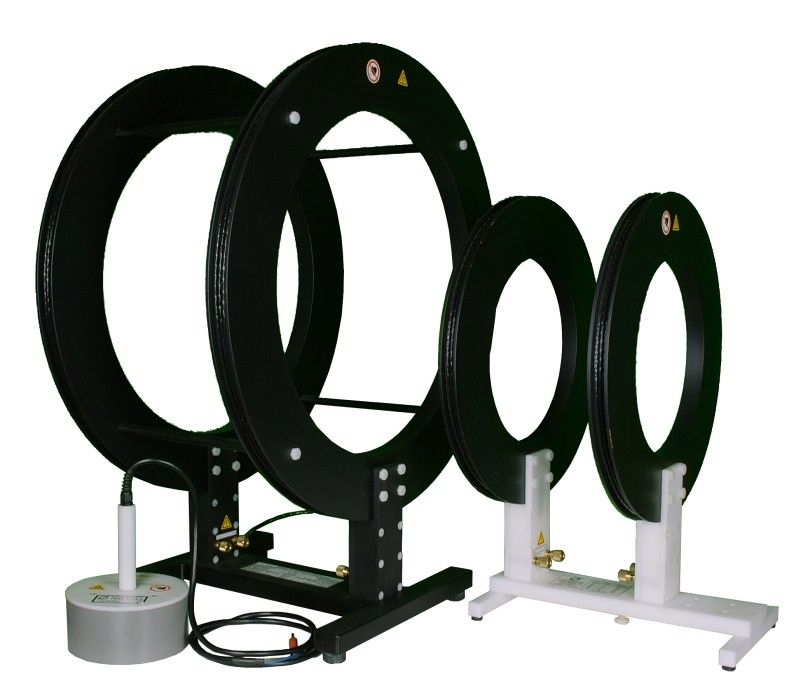

At least the system consists of a function generator as signal source, a power amplifier and a radiating loop or Helmholtz coil.

The system components will be individually configured for your requirements.



pdficon small Datasheet MagTest System

pdficon small Components overview MagTest System



Details

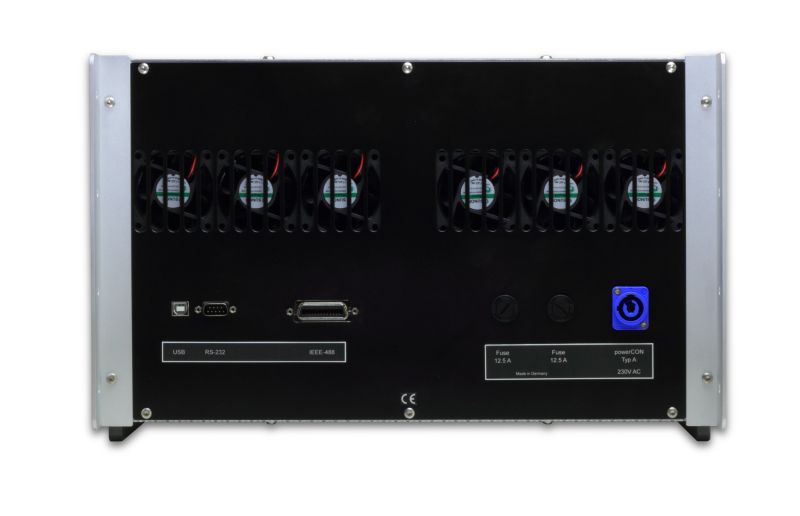

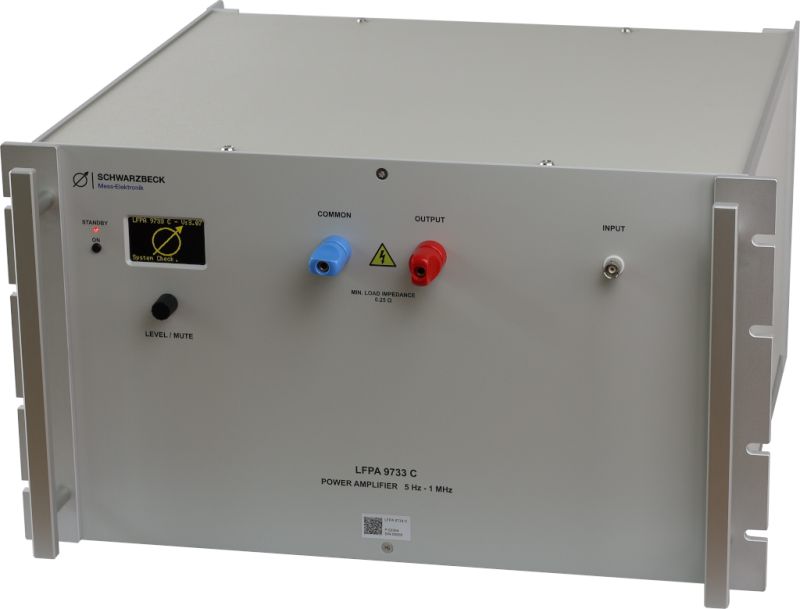

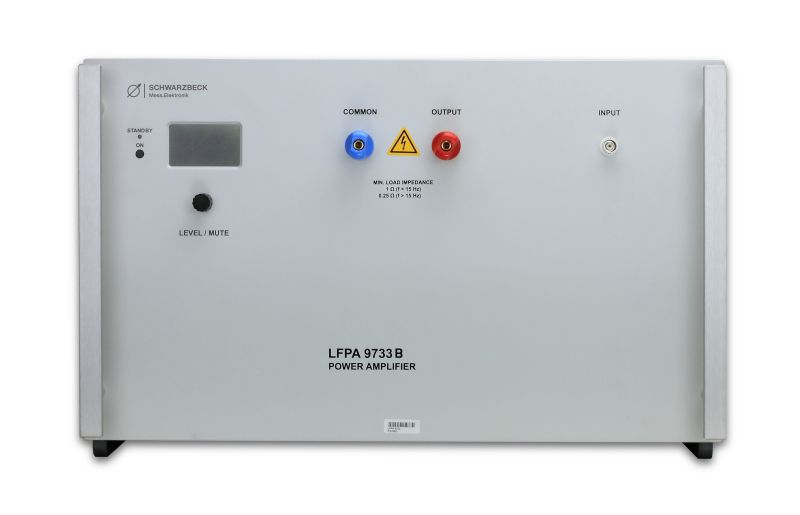

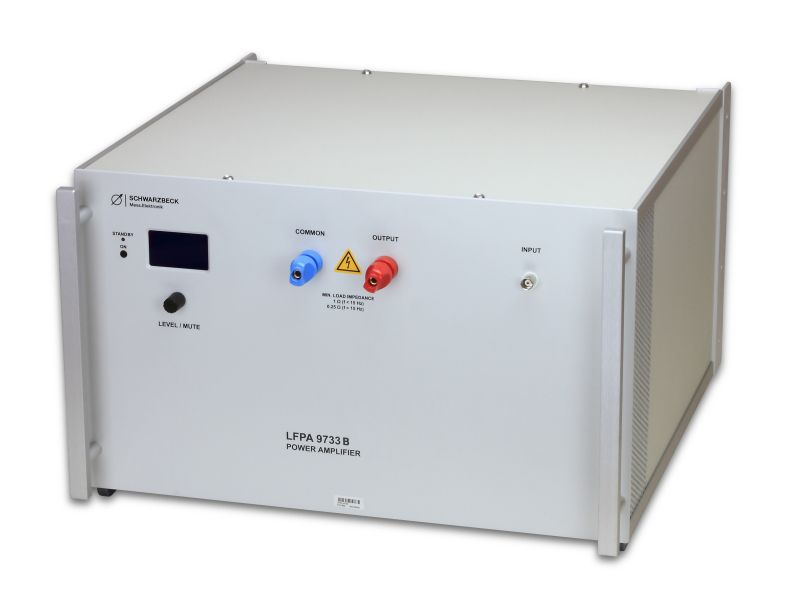

LFPA 9733 C - Power amplifier



NEW

  • LFPA 9733 C


The LFPA 9733 C is a multi-purpose power amplifier and can be used within the frequency range from 5 Hz to 1 MHz. Typical applications are magnetic immunity testing according to automotive standards and MIL-461. Its new output stage design allows for higher output in the high frequency range. Additionally it features a galvanically isolated input. Additionally unsymmetrical signals (as defined in GMW 3097) can be processed.



Frequency range(nominal): 5 Hz – 1 MHz
Gain (without load):

26 dB ±3 dB
AC Output current: (50% duty cycle up to 5 min.) 28 Arms
AC Continuous operating current: 14 Arms
Impedance of load min.: 0.25 Ω

DC output current:

 10 A

Max. output voltage:

 60 Vpeak @ 5 Hz - 250 kHz Linearly decreasing to 30 Vpeak @ 1 MHz
Max. output current: 40 Apeak
Typical input impedance: 1 kΩ
Input jack: BNC (isolated)
Output Connectors: Wing terminals
Ambient temperature: -10°C/+40°C
Power supply: 230 VAC Power-Con
Current consumption:  <16 Arms
Material of the housing: Aluminium
Housing dimensions (W x D x H): 448 x 410 x 268 mm
Overall dimensions: 448 x 473 x 280 mm
Weight: ca. 40 kg



Datasheed LFPA 9733 C




Details

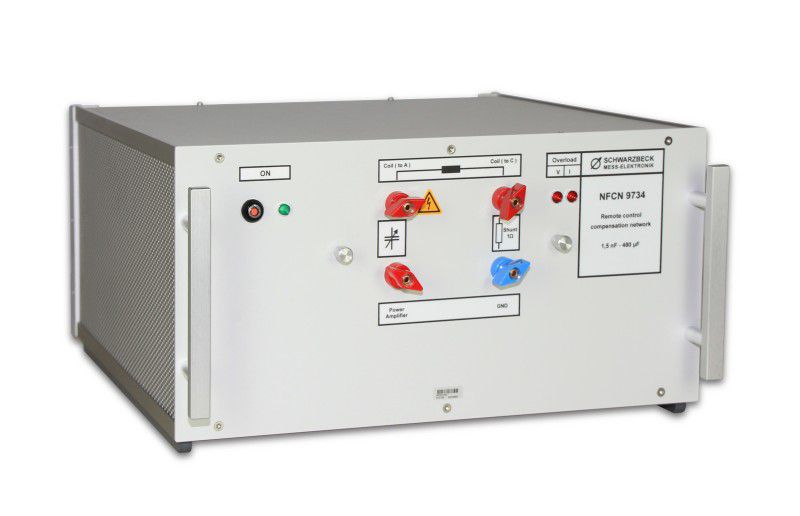

NFCN 9734 - Compensation Network





  • NFCN 9734


he primary function of the compensation network NFCN 9734 is to provide a serial compensation of the inductance of Helmholtz coils (e.g. the HHS 5206-16). Thus the currents needed to produce the desired field strength can be achieved using relatively low voltages. An integrated shunt allows measuring the coilcurrent and serves as minimum load for the power amplifier.



Technical data if used with HHS 5206-16:
Max continuous current: Up to 32 Arms
Dimensions: 447 mm x 470 mm x 191 mm
Capacitance range: 270 pF - 480 μF
Frequency range: DC – 200 kHz
Shunt: 0.5 W / 400 W

Weight:

 17.5 kg



Datasheet NFCN 9734




Details

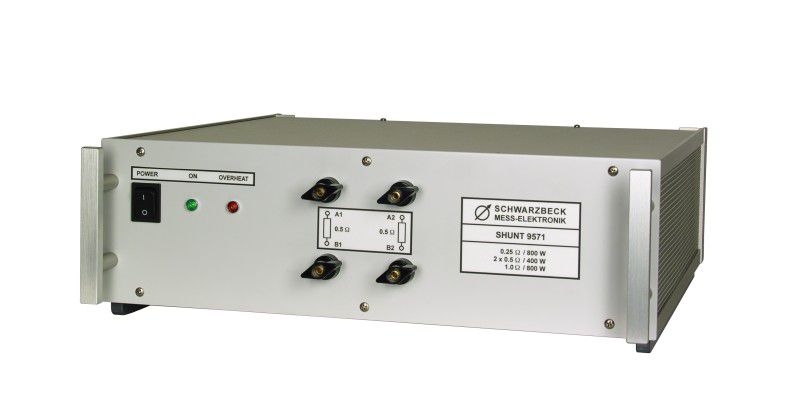

SHUNT 9571 Measuring Resistor



  • Schwarzbeck SHUNT 9571


The SHUNT 9571 is a measuring resistor for high power with low inductance.



he SHUNT 9571 is a measuring resis- tor which can be used in systems where magnetic fields have to be generated. When connected in series between an amplifier and a Helmholtz coil, the current can be measured indirectly. The voltage drop is proportional to the cur- rent through the coil.



The low inductive construction allows to use the SHUNT 9571 up to 250 kHz. Individual correction values for |Z| are provided in the calibration certificate from DC to 250 kHz.



Helmholtz coils act like a short circuit at low frequencies. The SHUNT 9571 pro- vides a protection circuit for the amplifier and has a resistive minimum load.



Frequency Range: DC – 250 kHz
Resistance values and max. continuous power rating:

2 x 500 mΩ / 400 W
1 x 1 Ω / 800 W
1 x 250 mΩ / 800 W
Weight: 13.5 kg
Dimensions (W/H/D): 447 mm x 144 mm x 470 mm
Power supply fans: 110/230 VAC 50/60 Hz



Datasheet SHUNT 9571




Details

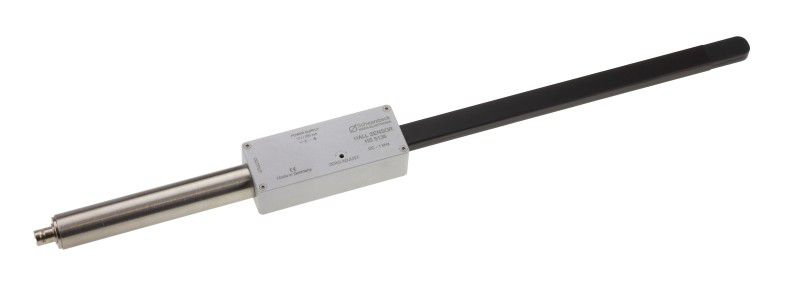

HS 5136 - Hall-Sensor





  • HS_5136_Hall_Sensor


The Hall sensor HS 5136 can be used to measure magnetic field strengths for immunity tests according to MIL STD 461 and various automotive standards. It measures static and dynamic magnetic fields with field strengths up to 9000 A/m (pk). The HS 5136 is a transverse probe, i.e. the magnetic flux lines must be orthogonal to the longitudinal probe axis and orthogonal to the surface of the Hall-element to obtain the maximum reading



Nominal frequency range: DC...1 kHz

0 … 7000 A/m (peak)
Extended measuring range: 0 … 9000 A/m (peak)
Nominal conversion factor: 1 (A/m) / mV
Load impedance: >2 kΩ

Non-linearity error:

 0.8 %

Power supply:

 12 VDC ±3 % / 250 mA
Operating temperature ambient: 15°C – 30°C
Housing: Aluminium
Dimensions: ca. 470 x 42 x 28 mm
Dimensions: D = 22 mm, L = 120 mm
Weight: 300 g
Connector: BNC Buchse



Datasheet HS 5136




Details

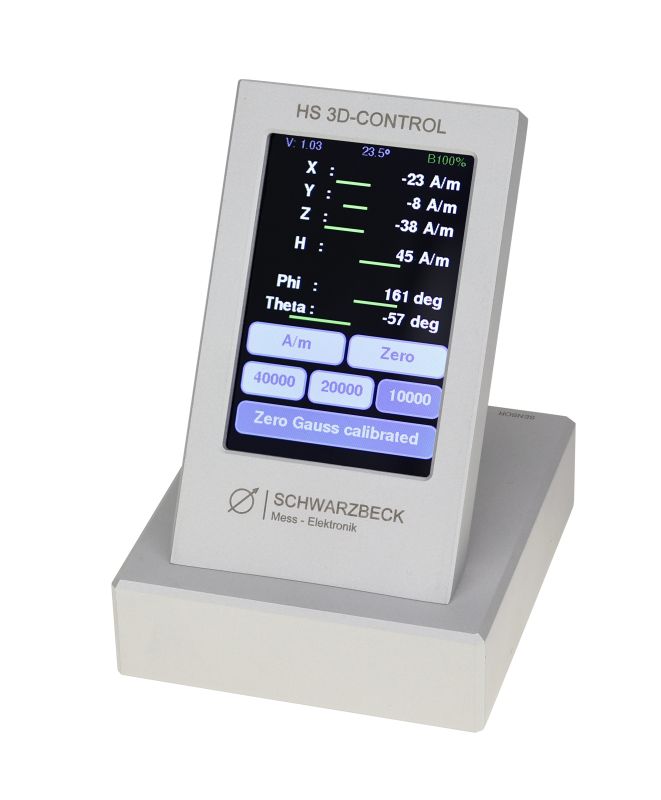

HS 3D-CONTROL - 3-dimensional magnetic field sensor for constant fields



NEW

  • HS 3D-CONTROL


The HS 3D-Control is a display unit which can be used to measure the 3-dimensional magnetic fieldstrength in conjunction with an appropriate sensor, e.g. to determine the earth's magnetic field.



Magnetic field values of the x-, y- and z-axis can be read separately from each other. It is also possible to read the magnitude, inclination and declination directly on the device. The display of the measured values can be set in [μT] or [A/m].



With the help of a Zero-Gauss chamber (e.g. Opt. 5136 ZG) the sensor can be zeroed against the earth's magnetic field. The measured values can be output serially via the USB connection. Depending on the desired measuring range there are different sensor heads available




Frequency Range: DC only
Sensor Type / Measuring range:

HS 3D-SENS50T1 / typ. 50 mT
HS 3D-SENS100T1 / typ. 100 mT
Resolution: ± 1 µT (nominal)
Connector: USB & 6 pol Round
Power Supply: 3.7 V Ah Lithium Ion

Typical Operation Time:

 16 h

Housingmaterial:

 Aluminium
Housing Dimensions: 140 x 100 x 120 mm
Weight: ca. 600 g



Datasheed HS 3D-CONTROL




Details

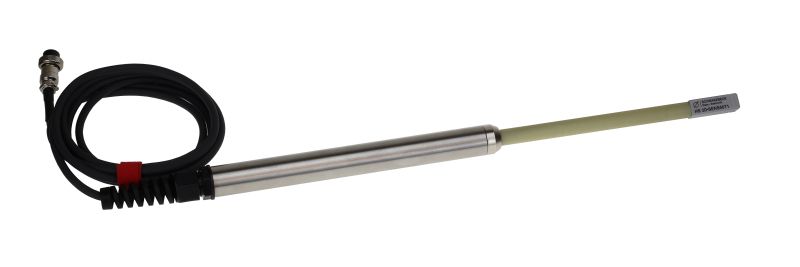

HS 3D-SENS50T1 - 3D magnetic field sensor head for DC fields



NEW

  • HS 3D-SENS50T1


The HS 3D-SENS50T1 is a 3-dimensional magnetic field sensor head for measuring DC fields, such as the earth's magnetic field. Magnetic field values can be measured separately from the x-, y- and z-axis. The HS 3D CONTROL display unit is required to display the measured values.



Frequency Range: DC only
Measuring range:

typ. max. ± 50 mT
Resolution: ± 1 µT (nominal)
Accuracy: ± 5%
Housingmaterial: Aluminium

Housing Dimensions:

 480 x Ø25 mm

Mounting tube:

 Ø22 mm
Sensor head dimension 38 x 12 x 12 mm
Weight: ca. 420 g



Datasheed HS 3D-SENS50T1




Details

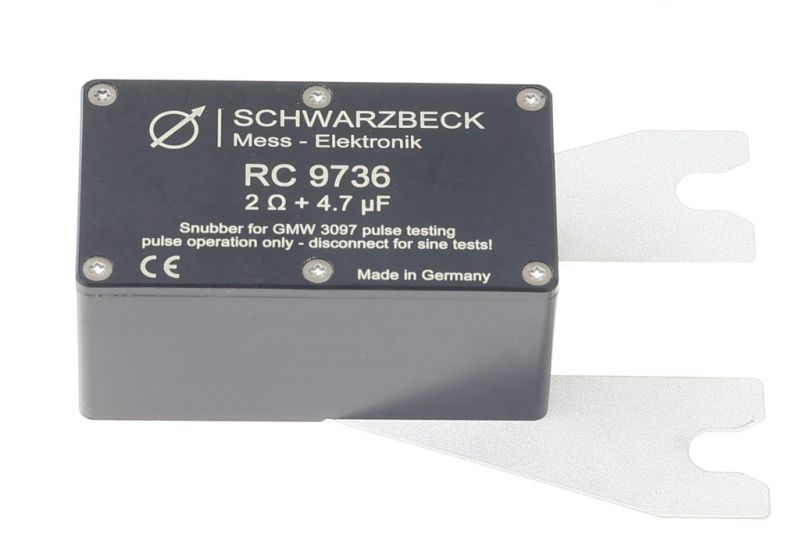

RC 9736 - Snubber network



NEW

  • RC9736


The RC 9736 is snubber network for pulse testing using the LFPA 9733 C and inductive loads.



Frequency range: DC - 1 MHz
Impedance:

2 Ω + 4,7 μF
Maximum pulse power: 3 kW
Maximum pulse energy: 100 mWs
Maximum pulse repetition rate: 1 Hz

Housing dimensions:

 86 x 50 x 44 mm

Terminal spacing:

 60 mm
Weight: < 200 g



Datasheet RC 9736
