VULP 9118 G Log Periodic Antenna



VULP 9118 G - Log Periodic Antenna

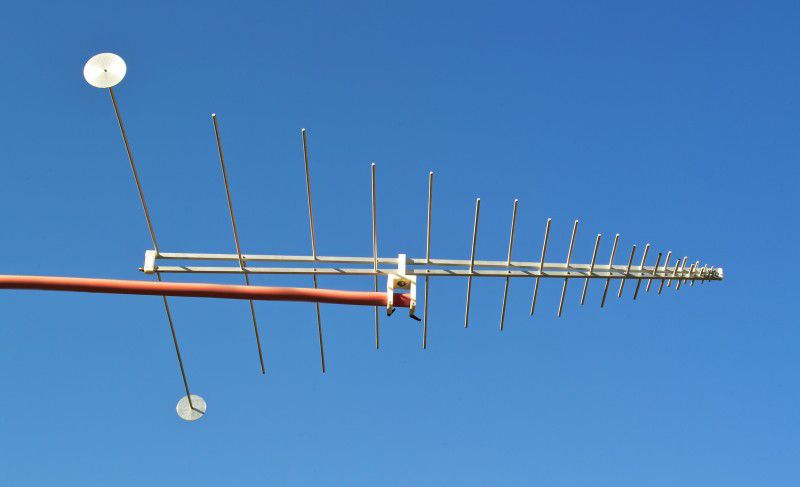

  • VULP 9118 G - Log Periodic Antenna

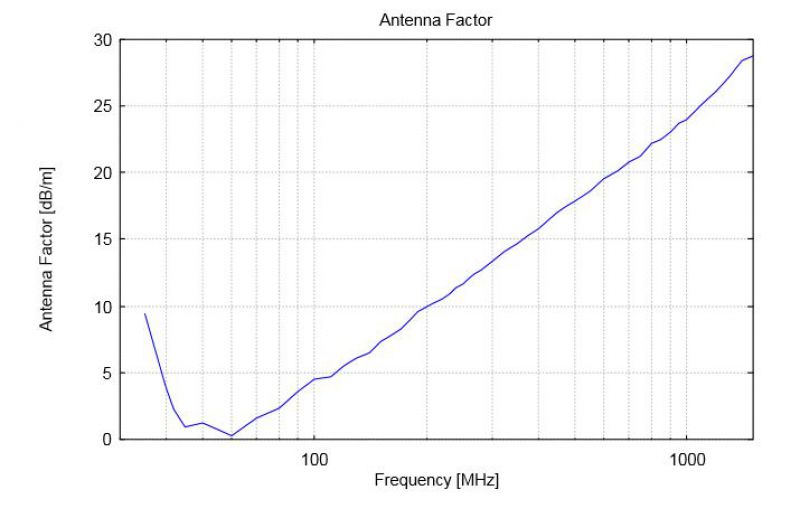

  • VULP 9118 G - Typical Antenna Factor

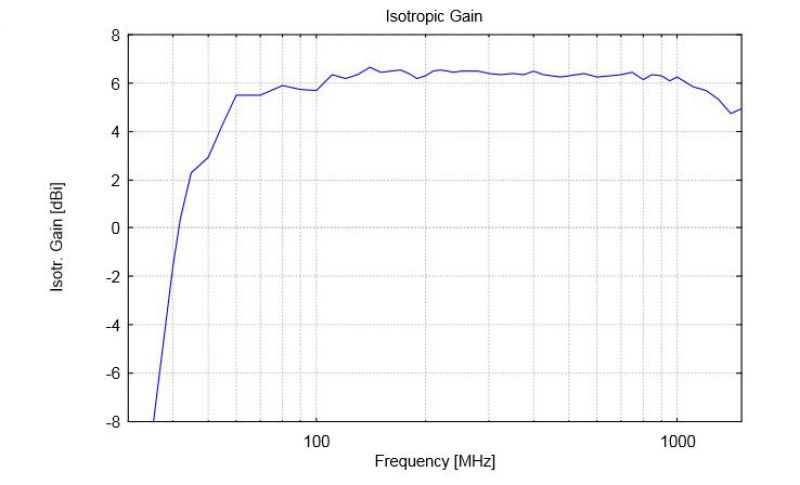

  • VULP 9118 G - Typical Antenna Gain
Frequency Range:

45  - 1500 MHz

Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power: 1 kW
Connector: Type N female
Impedance: 50 Ω nominal



Length: 2.53 m
Width: 2.67 m
Weight:
Mounting: Center Mount



Datasheet VULP 9118G

Dimensions

Short Measuring Distance

Fieldstrength
