VULP 9118 H Log Periodic Antenna



VULP 9118 H - Log Periodic Antenna

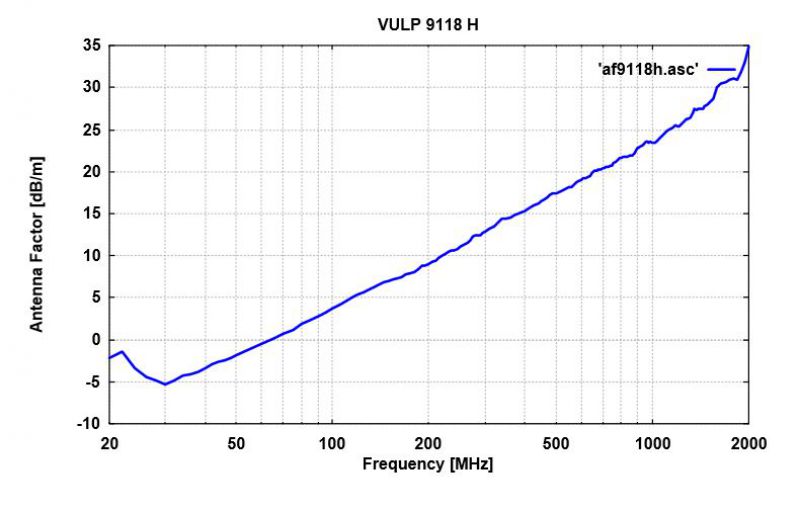

  • VULP 9118 H - Typical Antenna Factor

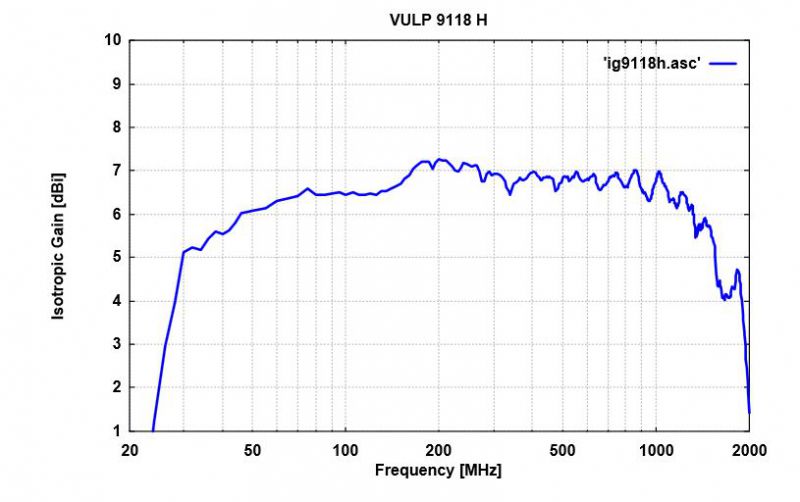

  • VULP 9118 H - Typical Antenna Gain
Frequency Range:

(26) 30 - 1500 (1800) MHz

Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power: 1 kW
Connector: Type N female
Impedance: 50 Ω nominal



Length: 4.85 m
Width: 5.12 m
Height: 0.38 m
Weight: 35 kg



Datasheet VULP 9118H

Radiation Pattern


 Option: grey coating and sealing for outdoor use
