VUSLP 9111-400 - Log Periodic Antenna

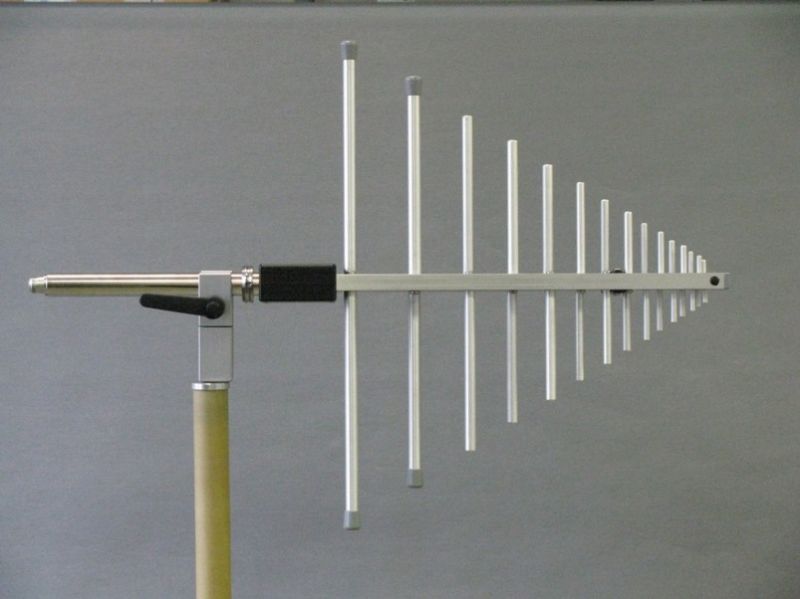

  • Schwarzbeck VUSLP9111-400 Log.-Periodic Antenna

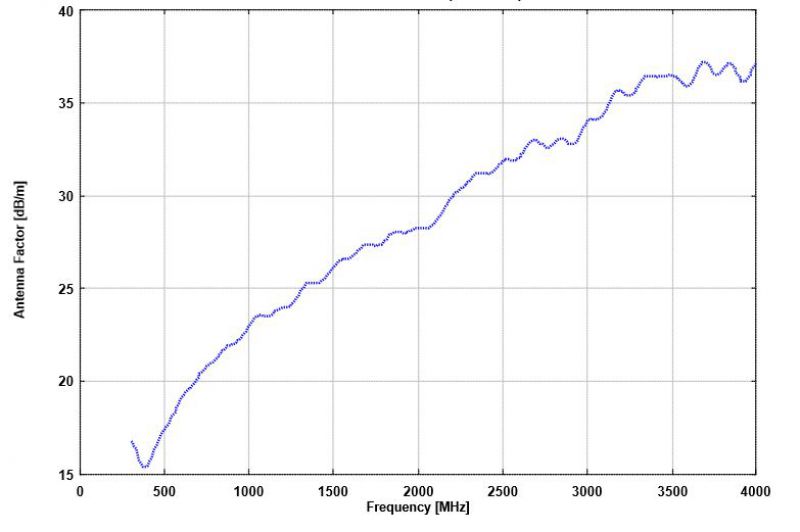

  • VUSLP 9111-400 - Typical Antenna Factor

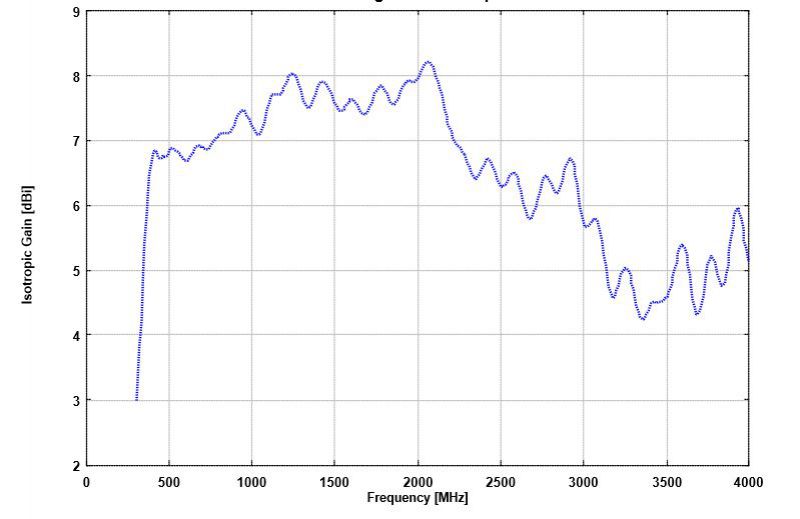

  • VUSLP 9111-400 - Typical Antenna Gain





Frequency Range:

(340) 400 MHz - 3 (4) GHz

Polarisation: linear
Pattern Type: directional
Max Power: 300 W (1 GHz)
Connector: Type N female
Impedance: 50 Ω nominal



Length: 64 cm
Width: 45 cm
Height: 7 cm
Weight: 1.3 kg
Mounting: 22 mm tube
Recommended Adapter: AA 9203 / AA 9202





Datasheet VUSLP 9111-400

pdficon small Radiation Pattern
