VULP 9118 E special - Log Periodic Antenna



VULP 9118 E special - Log Periodic Antenna

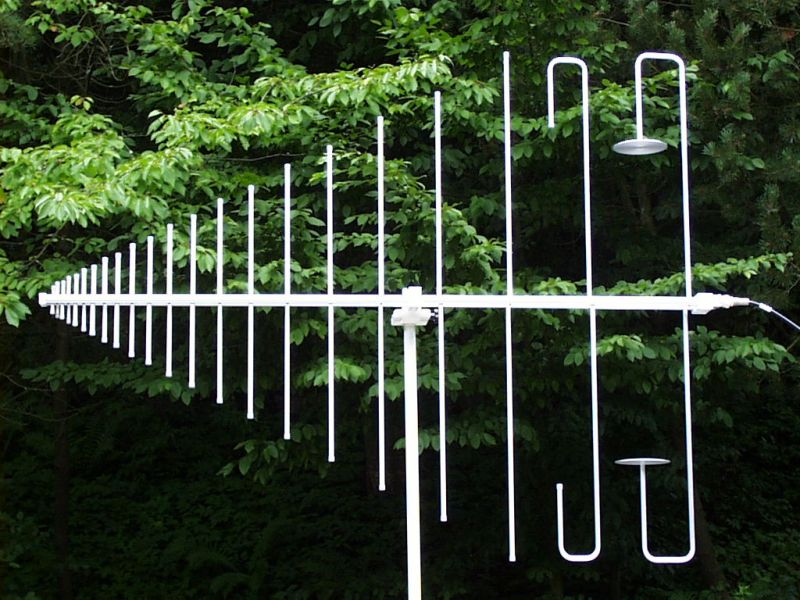

  • Schwarzbeck VULP9118E spezial
Frequency Range:

75 - 1500 (2000) MHz

Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power: 1 kW
Connector: Type N female
Impedance: 50 Ω nominal



Length: 1.87 m
Width: 1.40 m
Weight: 4.5 kg
Mounting: Center Mount
Recommended Adapter KG 9201



Nearly identical gain as VULP 9118 E but with reduced width.

Special = folded longest elements.



Datasheet VULP 9118E special

Short Measuring Distance

Fieldstrength
