  • Schwarzbeck VULB9162 broadband hybrid antenna

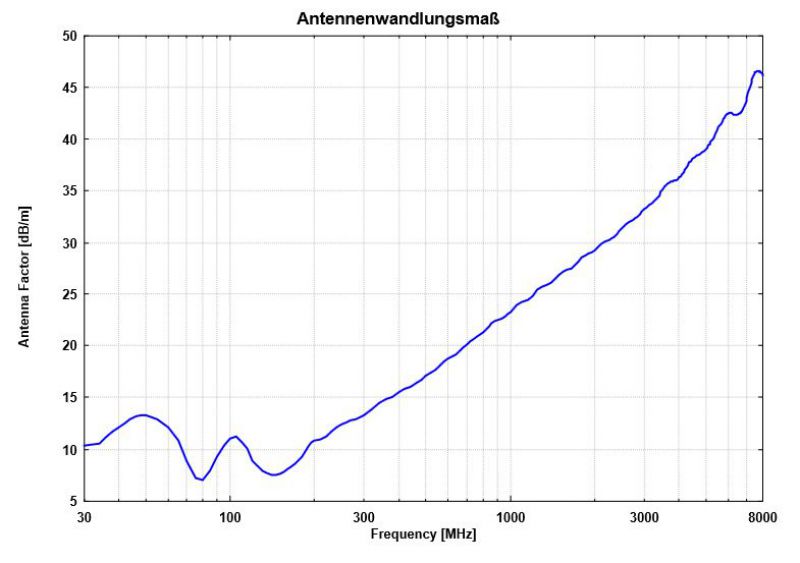

  • VULB 9162 - Typical Antenna Faktor

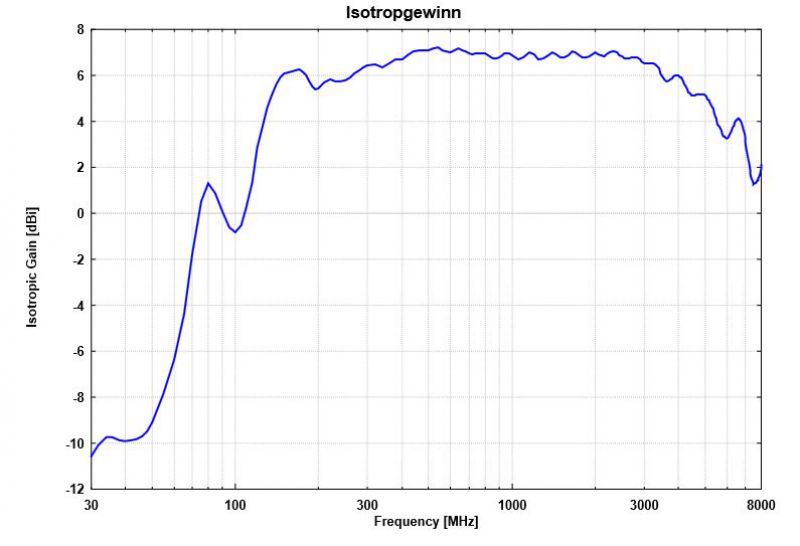

  • VULB 9162 - Typical Antenna Gain



Linear polarized Logarithmic Periodic Broadband Antenna combined with a 4:1 Broadband Dipole (Aluminium tubing) for Receive and Transmit Applications.





Frequency Range, nominal: 30 MHz - 7 GHz
Usable Frequency Range: 25 MHz - 8 GHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power:

200 W (intermitt.)
100 W (cont.)

Connector: N
Impedance: 50 Ω nominal
Length: 1.29 m
Width: 1.50 m
Height: 0.62 m
Weight: 3.1 kg
Mounting: 22 mm diameter tube
Recommended Adapter: AA 9202, AA 9203, RA 9215



Datasheet VULB 9162

Radiation Pattern

Short Measuring Distance

Fieldstrength
