HWRD 650 - Double Ridged Waveguide Horn Antenna

NEW

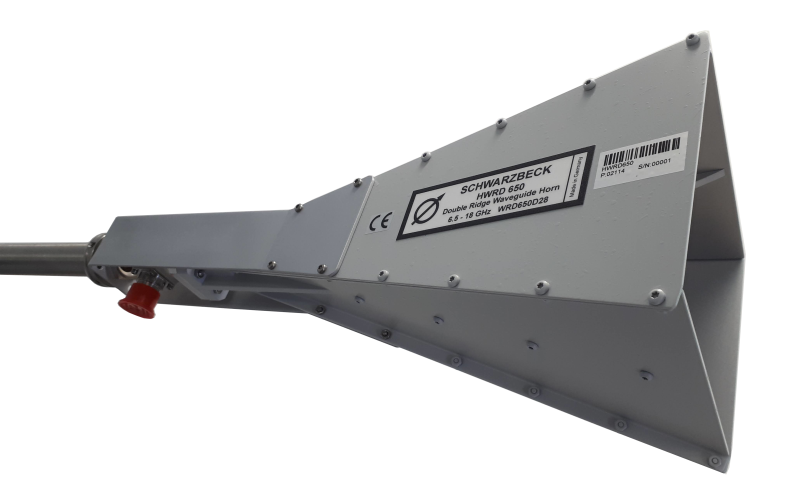

  • HWRD 650 - Double Ridge Waveguide Horn Antenna with Options

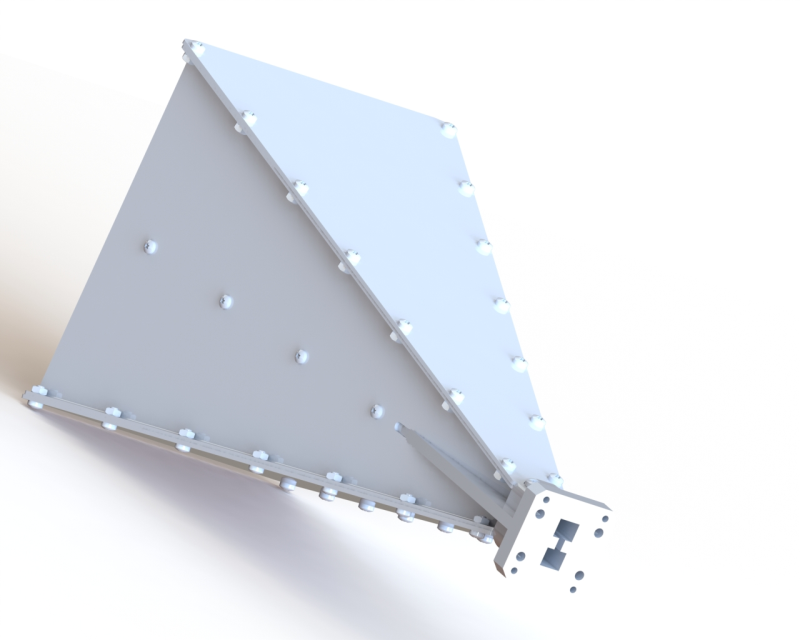

  • HWRD 650 - Double Ridge Waveguide Horn Antenna_1

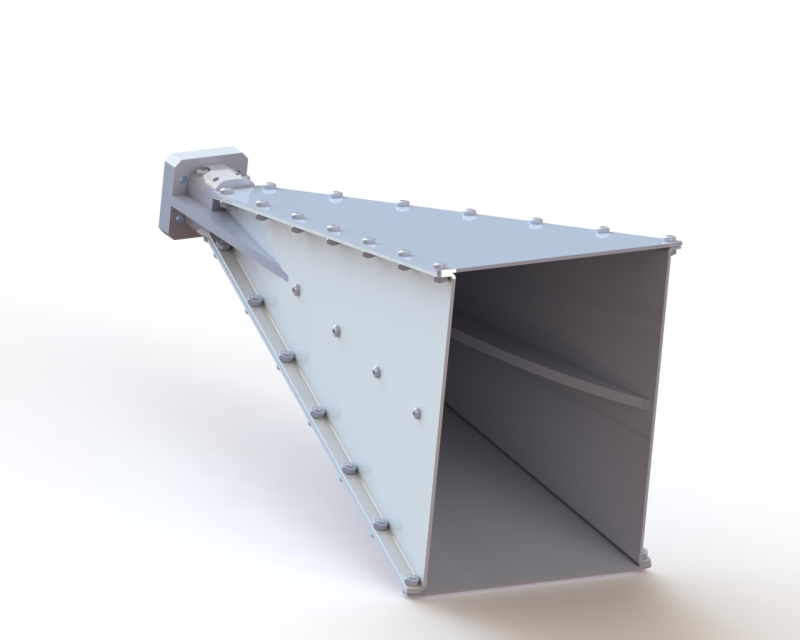

  • HWRD 650 - Double Ridge Waveguide Horn Antenna_2



Linear polarized double ridged broadband horn antenna for receive and transmit applications made of aluminium with waveguide flange.





Frequency Range, nominal: 6.5 - 18 GHz
Polarisation: linear
Pattern Type: directional
Isotropic Gain: 14 ... 20 dBi
Material: Aluminium
Max Power: 1 kW cont.
Connector: Waveguide-Flange WRD650D28
Impedance: 50 Ω nominal
Length: 282 mm
Width: 145 mm
Height: 117 mm
Weight: 0.41 kg
Options:
Mounting: Option 22 mm Tube
Adapter: Option N-female to waveguide WRD650



Datasheet HWRD650
