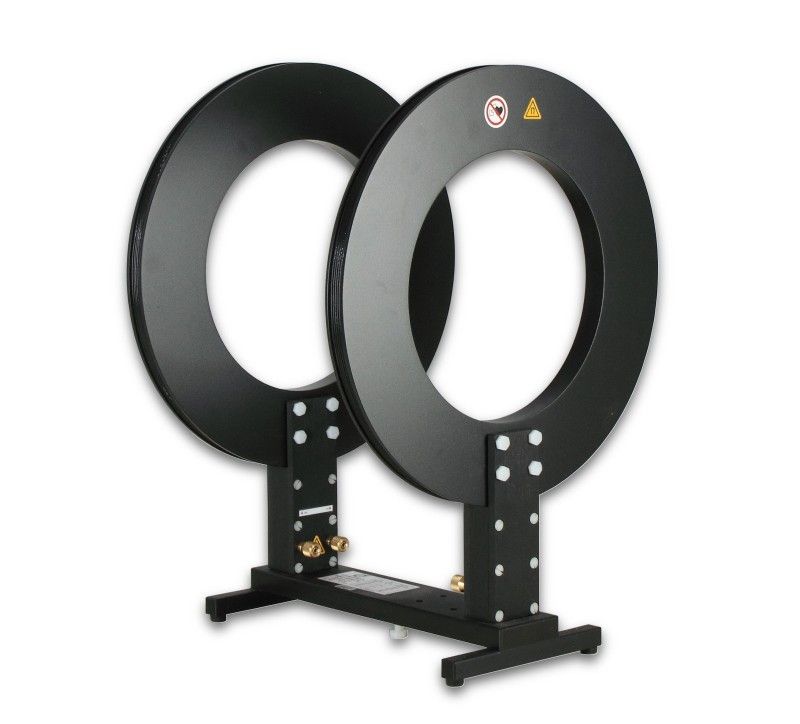

HHS 5204-36 - Circular Helmholtz Coils


  • HHS5204-36



Number of turns: 36
Maximum Coil Current: 20 A (5 min.)
Nominal Coil Current: 10 A continuous
Coil Spacings: 200 mm, 250 mm, 300 mm

The following data corresponds to a coil spacing of 200 mm

Max. Magn. Field Strength: 2500 A/m (5 min.)
Nominal Magn. Field Strength: 1288 A/m continuous
Magn. Field Strength, 1 A Coil Current:

128.8 A/m
162.2 dBµA/m

Conversion Current->Fieldstrength:

42.2 dB/m
Coil Diameter: 400 mm
Mechanical Dimensions: 0.38 m x 0.58 m x 0.42 m
Terminals: 4 mm female
Inductance (Single Coil): 1.15 mH
Inductance (Coil Pair): 2.56 mH
Usable Frequency Range: DC - 150 kHz
Resonance Frequency: >200 kHz

Weight:

8.5 kg



Datasheet HHS 5204-36
