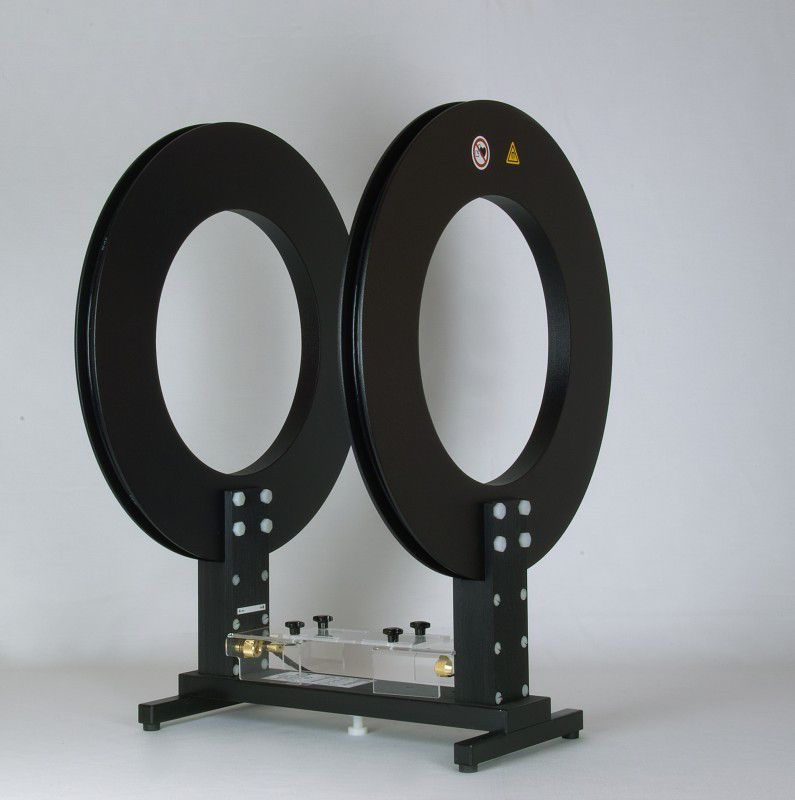

HHS 5204-12 - Circular Helmholtz Coils


  • HHS 5204-12 - Helmholtz Coils



Number of turns: 12
Maximum Coil Current: 60 A (5 min.)
Nominal Coil Current: 30 A continuous
Coil Spacings: 200 mm, 250 mm, 300 mm

The following data corresponds to a coil spacing of 200 mm

Max. Magn. Field Strength: 2500 A/m (5 min.)
Nominal Magn. Field Strength: 1288 A/m continuous
Magn. Field Strength, 1 A Coil Current:

42.93 A/m
152.66 dBµA/m

Conversion Current->Fieldstrength:

32.66 dB/m
Coil Diameter: 400 mm
Mechanical Dimensions: 0.38 m x 0.58 m x 0.42 m
Terminals: 4 mm female
Inductance (Single Coil): 120 µH
Inductance (Coil Pair): 240 - 260 µH
Usable Frequency Range: DC - 500 kHz
Resonance Frequency: >1.4 MHz

Weight:

10.2 kg



Datasheet HHS 5204-12



 files for the MagTest software
