HHS 5203-536 - Circular Helmholtz Coils

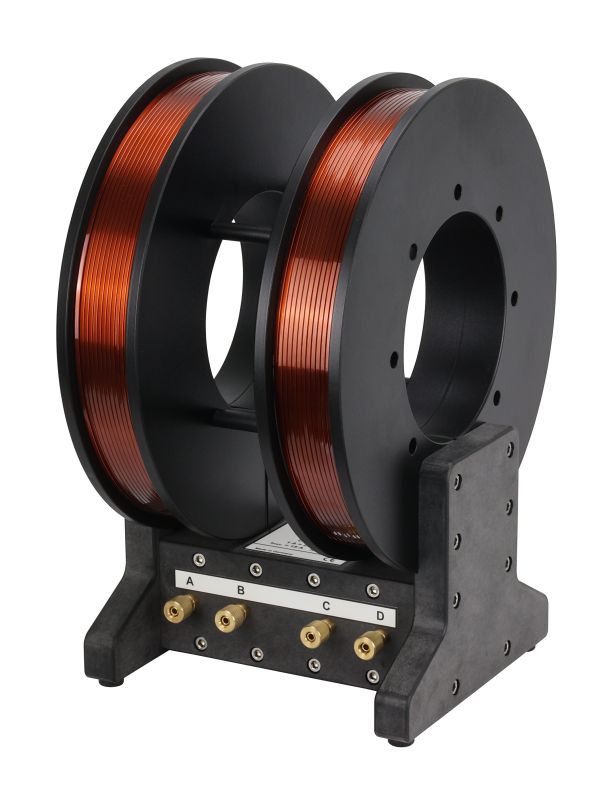

  • HHS 5203-536

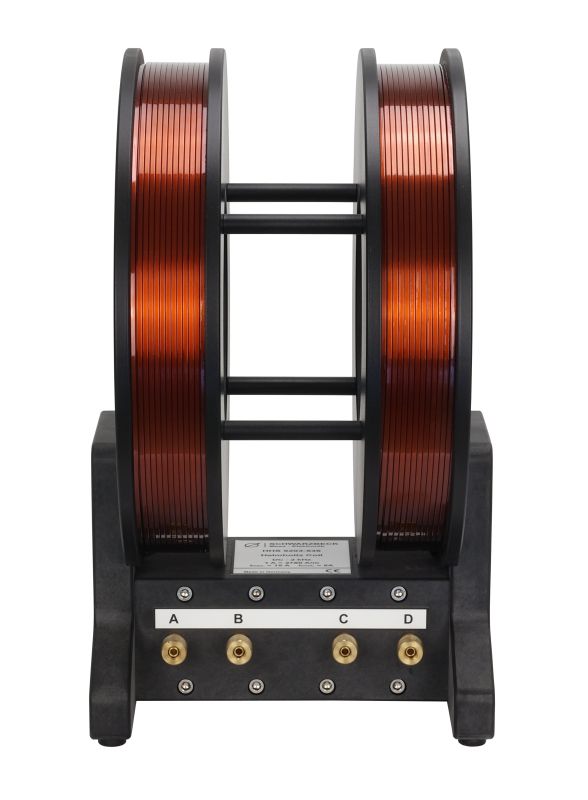

  • HHS 5203-5362_Seite




Number of turns: 536
Maximum Coil Current: 15 A (5 min.)
Nominal Coil Current: 5 A continuous
Coil Spacings (centered): 143 mm
Max. Magn. Field Strength: 42 kA/m (5 min.)
Nominal Magn. Field Strength: 14 kA/m continuous
Magn. Field Strength, 1 A Coil Current:

2780 A/m
188.9 dBµA/m

Conversion Current-Fieldstrength (Coil factor): 68.9 dB/m
Coil Diameter: 256 mm
Mechanical Dimensions: 0.41 m x 0.32 m x 0.25 m
Terminals: 4 mm banana jacks Screw terminals
Inductance (Single Coil): typ. 82 mH @ 50 Hz
Inductance (Coil Pair): typ. 188 mH @ 50 Hz
Usable Frequency Range: DC - 2 kHz
Resistance (per coil): 2.75 W
Coil capacitance (pair of coils): ~0.8 nF
Resonance Frequency (pair of coils): > 10 kHz (typ. 13 kHz)

Weight:

35 kg



Datasheet HHS 5203-536
