  • BNB 8654

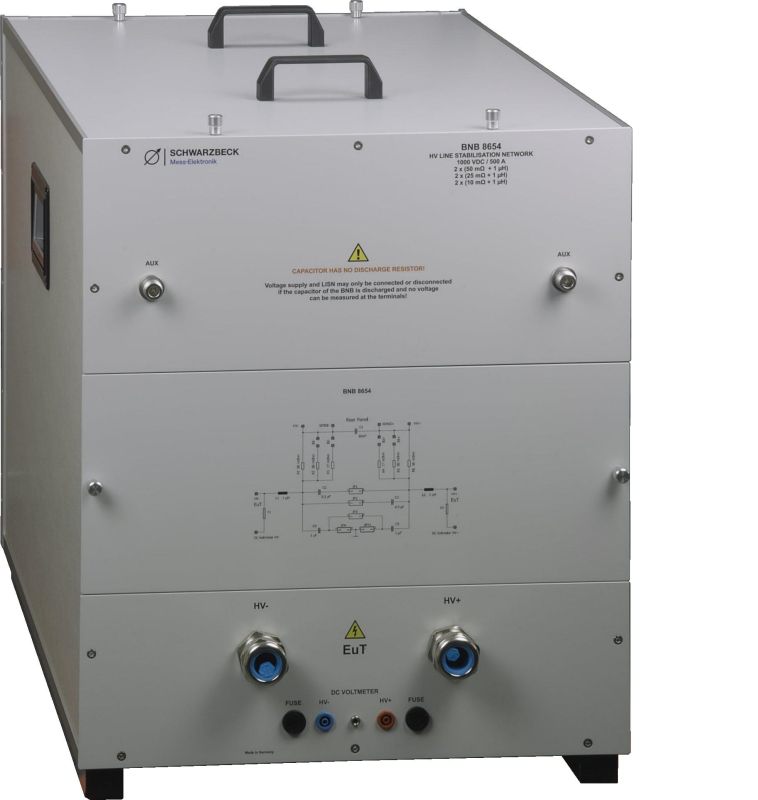

LISN, implemented as a battery impedance network here, shall supply electric power to the device under test (DuT) and provide a standardized impedance. It has been developed for automotive tests e.g. to fulfill the requirements of the manufacturer standard "MBN 11123".



The BNB 8654 is constructed symmetrically with two paths, “HV+” and “HV-“, with variable power resistors in each path. A battery can be simulated by various internal resistors. Three possible values are available for Rint: 2 x 50 mΩ, 2 x 25 mΩ and 2 x 10 mΩ (one resistor in each path). The built in components have no specific polarity. The paths are isolated from the housing.



Max. Voltage: 1000 VDC
Max. DC-current:

500 A

Max. current (limited time)

550 A / 2 x 50 mΩ
1100 A / 2 x 25 mΩ
1600 A / 2 x 10 mΩ

Impedance: 2 x Rint in series with 1 µH
(Rint=50/25/10 mΩ)
Self-inductance: 0.2 µH
LISN-inductance: 2 x 1 µH
Weight: 71 kg
Dimensions B x H x T: 446 x 535 x 770 mm
Standard: MBN 11123, ISO 21498-2
