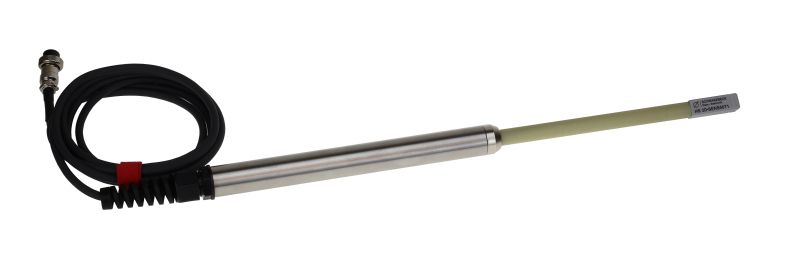

HS 3D-SENS50T1 - 3D magnetic field sensor head for DC fields



NEW

  • HS 3D-SENS50T1


The HS 3D-SENS50T1 is a 3-dimensional magnetic field sensor head for measuring DC fields, such as the earth's magnetic field. Magnetic field values can be measured separately from the x-, y- and z-axis. The HS 3D CONTROL display unit is required to display the measured values.



Frequency Range: DC only
Measuring range:

typ. max. ± 50 mT

Resolution: ± 1 µT (nominal)
Accuracy: ± 5%
Housingmaterial: Aluminium

Housing Dimensions:

480 x Ø25 mm

Mounting tube:

Ø22 mm
Sensor head dimension 38 x 12 x 12 mm
Weight: ca. 420 g
