SHUNT 9571 Measuring Resistor



SHUNT 9571 Measuring Resistor

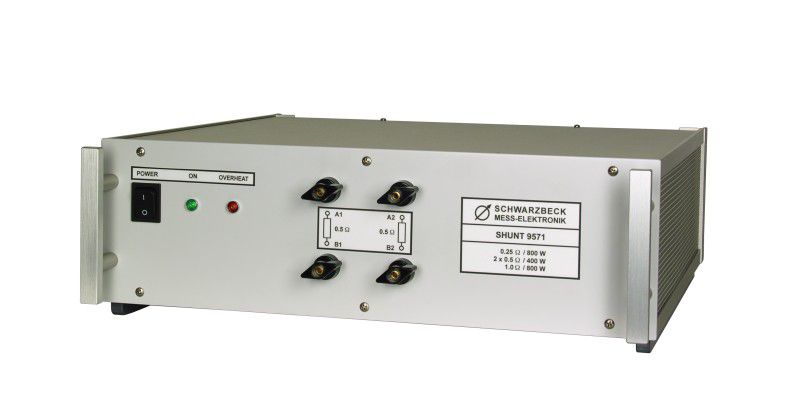

  • Schwarzbeck SHUNT 9571


The SHUNT 9571 is a measuring resistor for high power with low inductance.



he SHUNT 9571 is a measuring resis- tor which can be used in systems where magnetic fields have to be generated. When connected in series between an amplifier and a Helmholtz coil, the current can be measured indirectly. The voltage drop is proportional to the cur- rent through the coil.



The low inductive construction allows to use the SHUNT 9571 up to 250 kHz. Individual correction values for |Z| are provided in the calibration certificate from DC to 250 kHz.



Helmholtz coils act like a short circuit at low frequencies. The SHUNT 9571 pro- vides a protection circuit for the amplifier and has a resistive minimum load.



Frequency Range: DC – 250 kHz
Resistance values and max. continuous power rating:

2 x 500 mΩ / 400 W
1 x 1 Ω / 800 W
1 x 250 mΩ / 800 W

Weight: 13.5 kg
Dimensions (W/H/D): 447 mm x 144 mm x 470 mm
Power supply fans: 110/230 VAC 50/60 Hz
