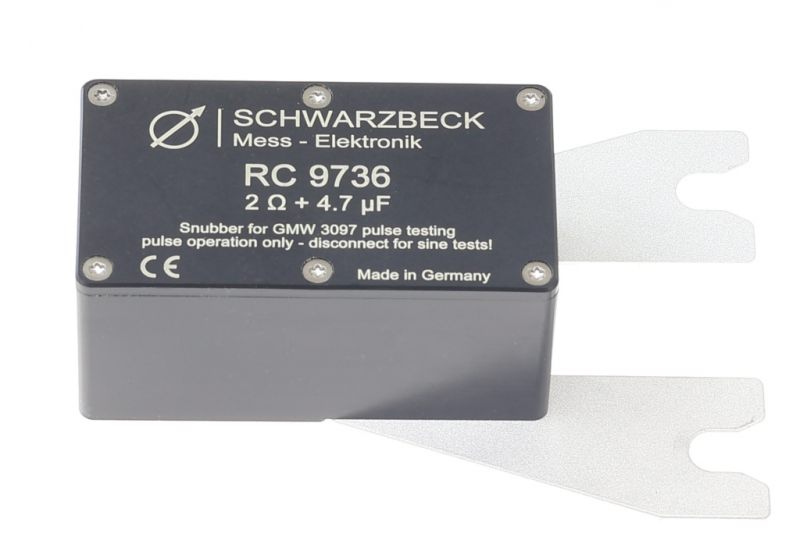

RC 9736 - Snubber network



RC 9736 - Snubber network



NEW

  • RC9736


The RC 9736 is snubber network for pulse testing using the LFPA 9733 C and inductive loads.



Frequency range: DC - 1 MHz
Impedance:

2 Ω + 4,7 μF

Maximum pulse power: 3 kW
Maximum pulse energy: 100 mWs
Maximum pulse repetition rate: 1 Hz

Housing dimensions:

86 x 50 x 44 mm

Terminal spacing:

60 mm
Weight: < 200 g



Datasheet RC 9736
