Accessories for LISN

Details

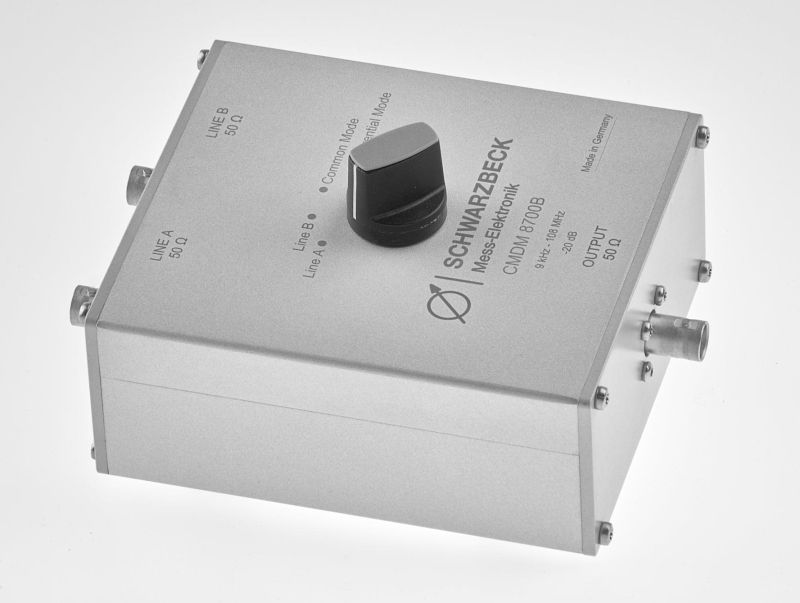

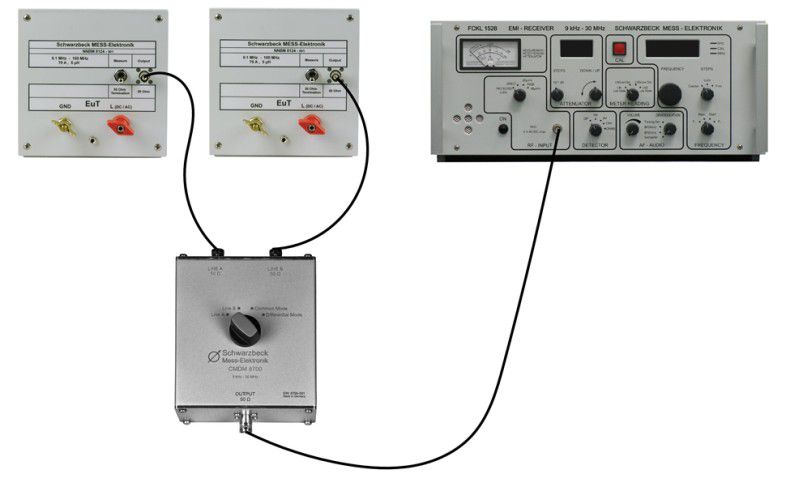

	CMDM 8700 Common mode / Differential mode switch The measurement mode switch CMDM 8700 B expands the measurement possibilities of two V-LISN to T- and Delta-LISNs for the profound analysis of interference emissions. Frequency range: 9 kHz - 108 MHz Measurement modes: Line A, Line B, Common mode, Differential mode Connectors: BNC (50 Ohm) Datasheet CMDM 8700 B

	HVSE 8600 / HVSE 8601 Shielded Enclosure for Automotive LISN The HVSE 8600 Shielded Enclosure (Shielding Box) was designed to increase the shielding effectiveness of automotive LISN significantly, which is neccessary for measurements of electric- or hybrid vehicles. Material: Aluminium Shielding Effectiveness: typ. > 100 dB HVSE 8600 is suitable for the following LISN types: NNHV 8123, NNHV 8123-200, NNHV 8123-400 HVSE 8601 is suitable for NNHV 8123-800 Further Information about the application of the shielded enclosure can be found in CISPR 25 Ed. 4 or e.g. in the manufacturer specific standard BMW GS 95025-1. Datasheet HVSE 8600 Datasheet HVSE 8601 HV-Cable Assembly

	KA 812x Calibration adapters for artificial mains networks AMN or LISN Datasheet KA 812x

	Wiring accessories for LISN Wing terminals hook and ring type cable lugs and connecting accessories for LISN Wiring accessories for LISN

	CEKON CEKON CEE three- phase current connector plug jack 16 A and 32 A. Datasheet CEKON

	SCHUKO Adapter Schuko plug, receptacle for Great Britain, Singapore, Hong Kong, Switzerland, Australia, New Zealand, USA, Canada, Japan, Taiwan... Datasheet SCHUKO

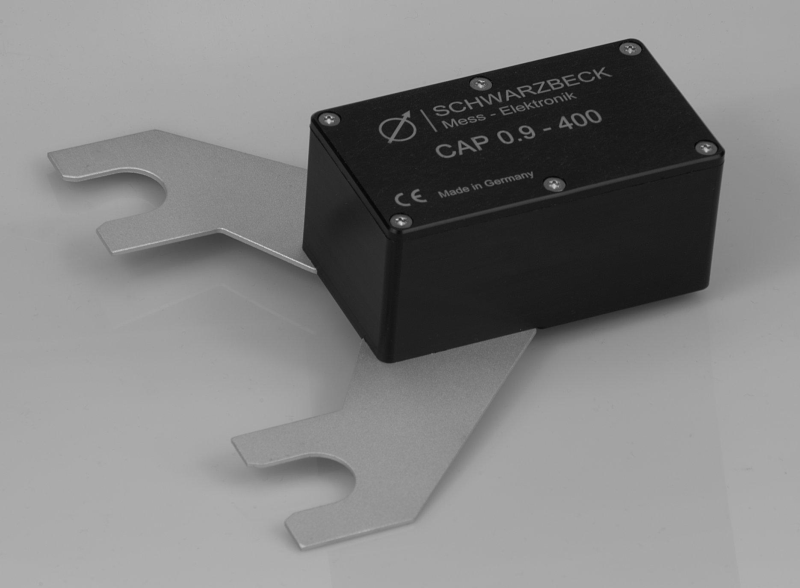

	CAP 0.9-400 In order to be compliant to the standards ECE R10.06, CISPR 12 and PSA (which require a capacitance of in total 1 uF parallel to a resistance of 1 MΩ at the input side of the LISN) a 0.9 μF capacitor like the CAP 0.9-400 has to be connected to the mains terminals of the NNHV 8123-400 or NNHV 8123-800 LISN. Datasheet CAP 0.9-400

	CAP 10 / CAP 10 8226-2 To be compliant to the standards DEF STAN 59, DO 160 or MIL 461F ( Method CS 101-4; CS106-3) a 10 μF capacitor like the CAP 10 has to be connected to the mains connectors of the LISN. Datasheet CAP 10 Datasheet CAP 10 8226-2

	Artificial Hand Artificial hand according to CISPR 16-1-2 (RC combination 510 Ω + 220 pF) in housing with banana plug and copper foil. Datasheet Artificial Hand
