Flat, broadband antenna elements with termination resistors and heatsinks for the NMHC 4MM Balun for efficient immunity testing at close distances in the frequency range below 220 MHz.

Datasheet 419 NJ

Datasheet NMHC 4 MM

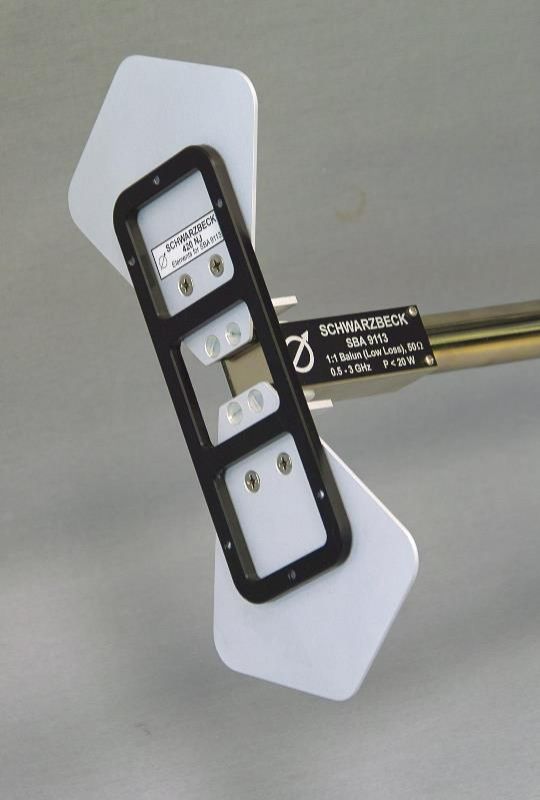

Elements for radiated immunity caused by hand portable transmitters

with SBA 9113 or SBA 9113 mini version for the Ford standard RI115 (Ford EMC CS 2009)

Datasheet 420 NJ

Datasheet SBA 9113

Option:

Opt: Spacer 50

Spacer made of Polystyrene to set the 420 NJ elements test distance to 50 mm.

The combination of  the flat elements 422 NJ with SBA 9119-Balun provides remarkable fieldstrength levels with moderate transmit power. With approx. 10 Watt transmit power one can reach fieldstrength levels of 300 V/m at a distance of 30 mm.

Datasheet 422 NJ

Field Uniformity 422 NJ

Datasheet SBA 9119

Assembly 422 NJ

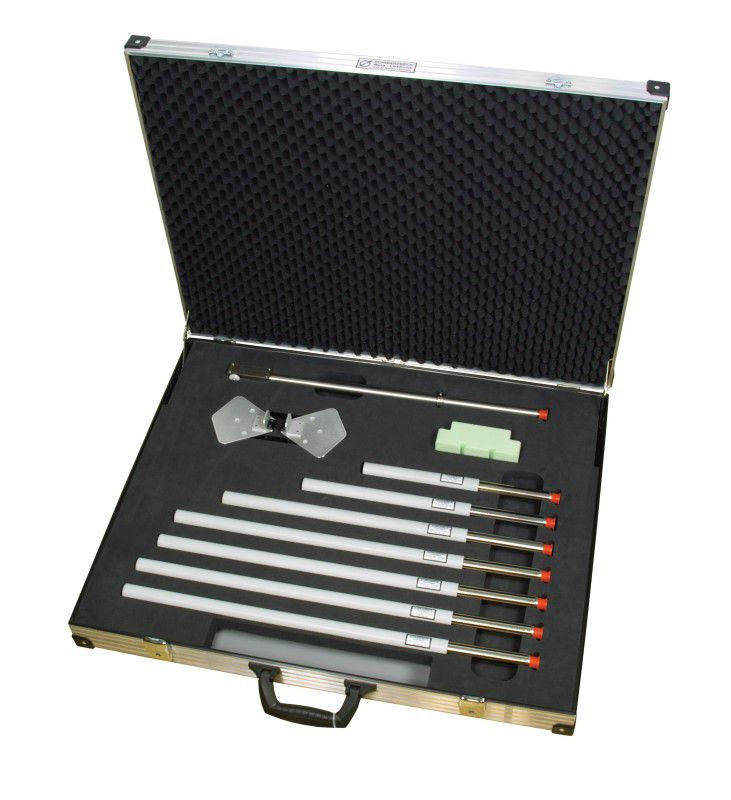

Tuned sleeve antennas are tuned half wave dipoles, with their axis aligned as a straight extension of the coaxial feed cable.

The main applications of the TSA-antennas are immunity testing against handheld transmitters in the automotive industry within the VHF/UHF range according to ISO 11542-9 respectively manufacturer specific standards (e.g. Toyota TSC 7006G).

  Datasheet TSA

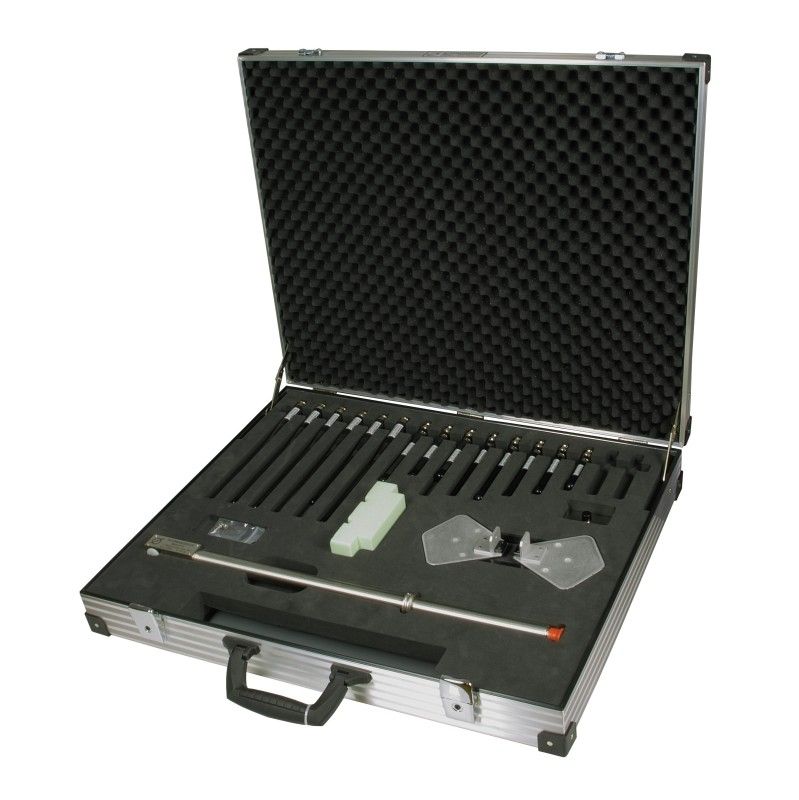

Nissan and Renault antenna set to test immunity against handy transmitters acc. to Nissan specification 28401NDS02 [6] and RENAULT 36-00-808/L (combined set) consisting of normal mode helical antennas, counterpoise, SBA 9113 with 420NJ elements and transport case (see extra list)

Datasheet NMHA 6M

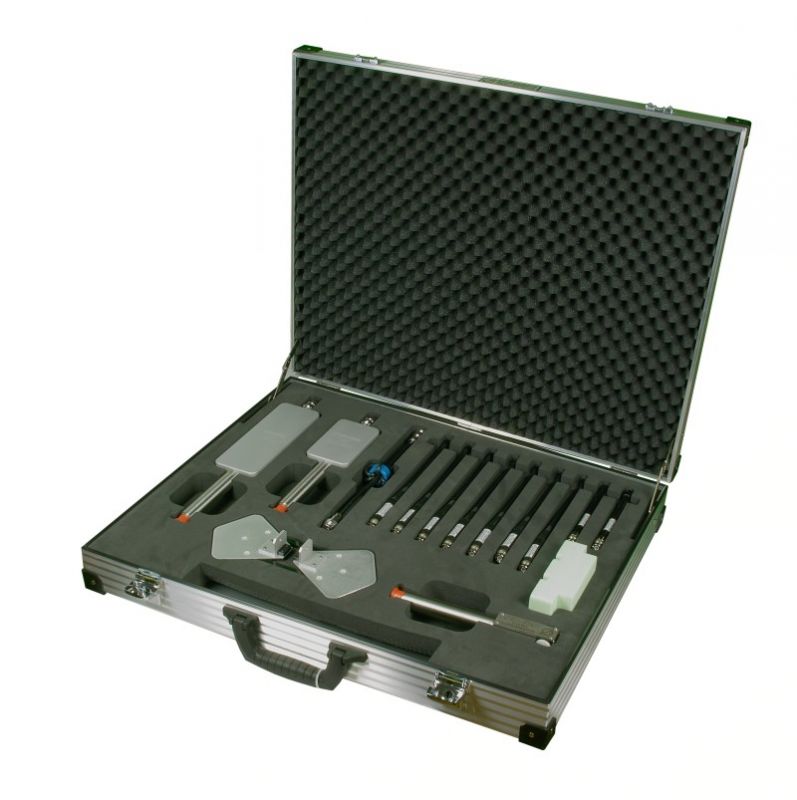

The antenna kit for testing immunity against hand-held radios acc. to Volkswagen standard TL 82166:2009-05
consists of the following parts:

For the frequency range 26-174 MHz matched normal mode helical antennas are used. For frequencies from 360 MHz and beyond the broadband SBA 9113 mini version with 420 NJ elements is used.

Datasheet VW TL 82166 2009-05 7.3 Antenna Set

NEW

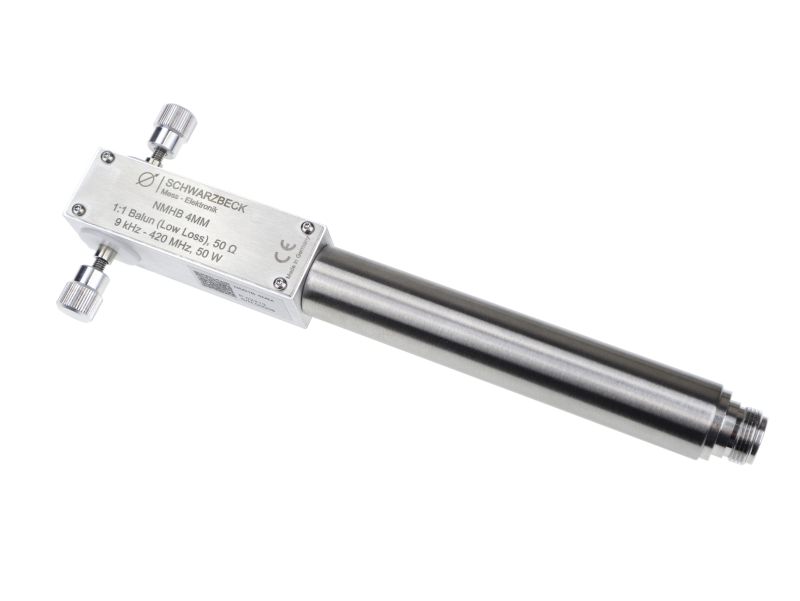

Low Loss Broadband Balun 1:1 with female N-Connector for receive and transmit applications in the VHF frequency range. The main application of the NMHB 4 MM is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 142 MHz and 246 MHz with different folded dipole elements FDAI. The radiating elements can be exchanged without any tools by the means of knurled M4 screws.

Datasheet NMHB 4MM

FDAI assambly instructions

NEW

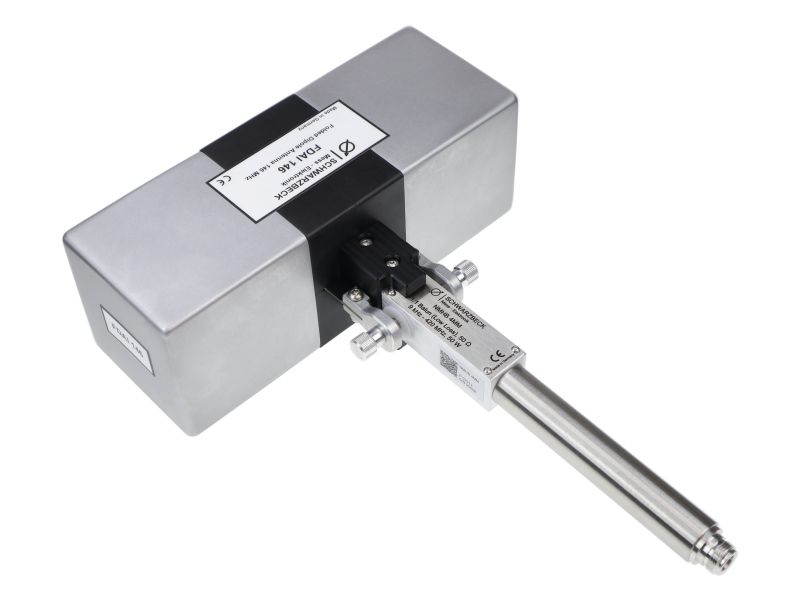

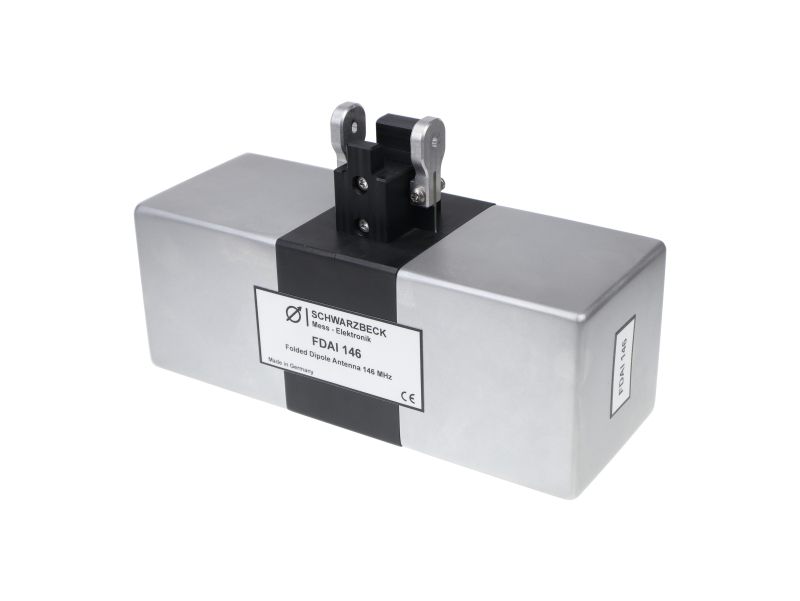

The FDAI 146 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 146 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 142 MHz and 150 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).

Datasheet FDAI 146

NEW

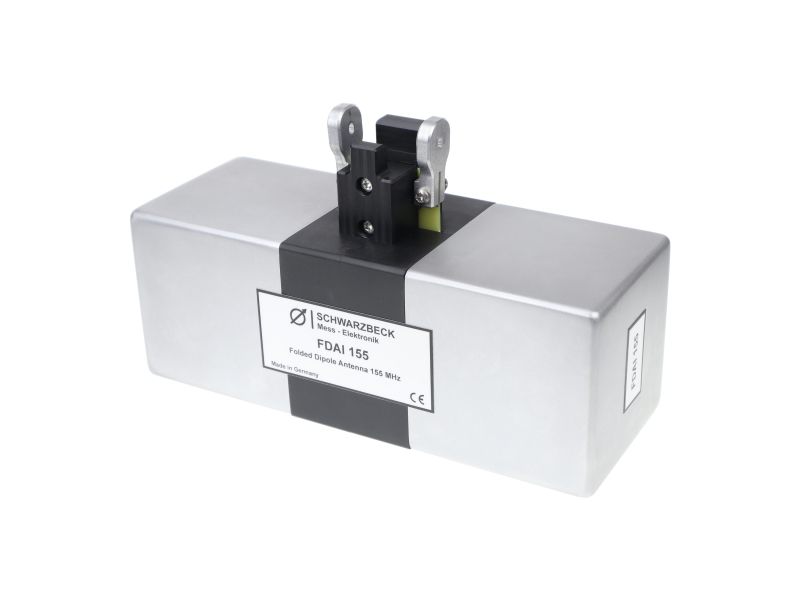

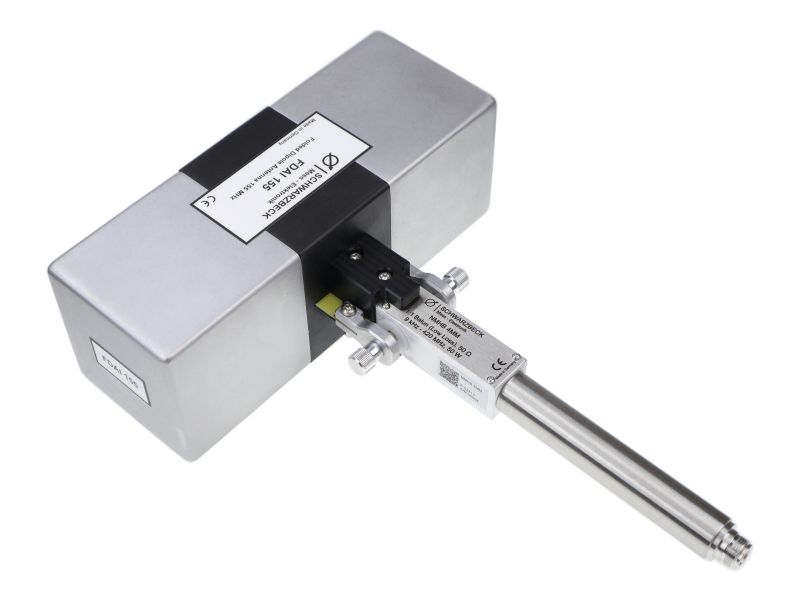

The FDAI 155 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 155 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 151 MHz and 160 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).

Datasheet FDAI 155

NEW

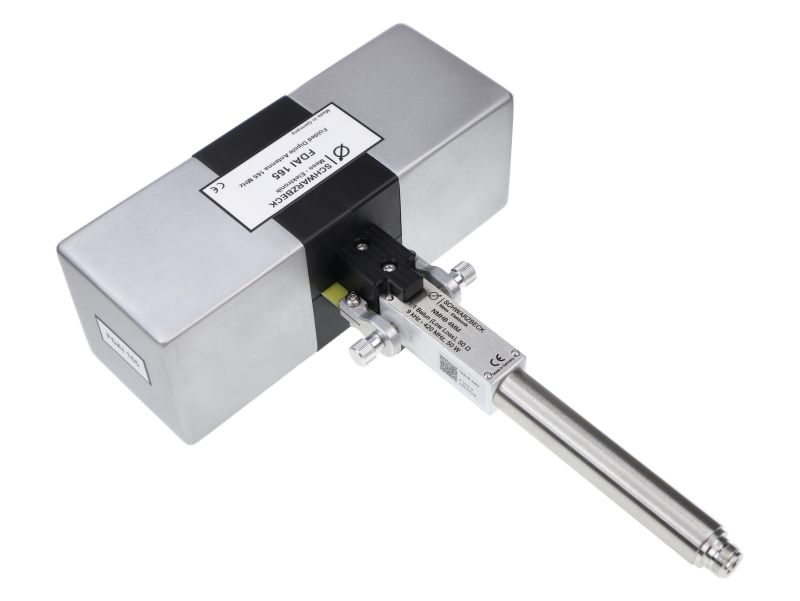

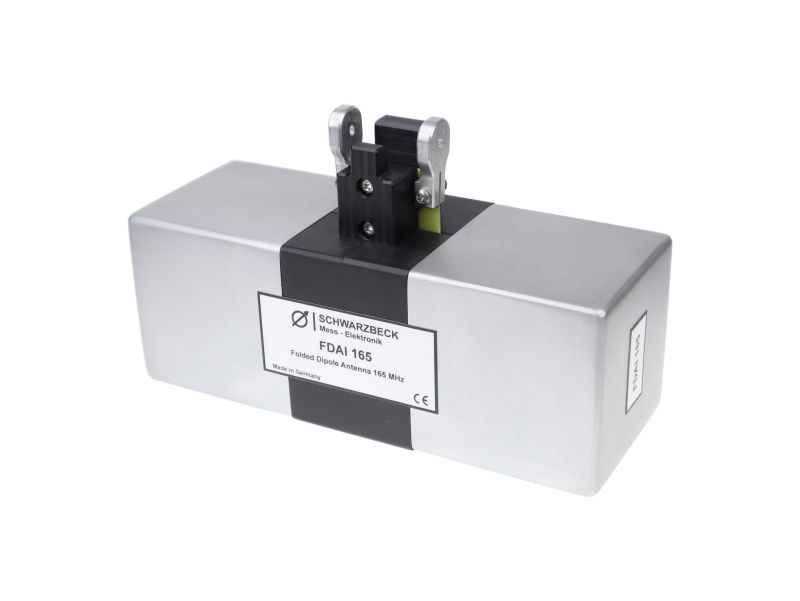

The FDAI 165 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 165 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 162 MHz and 174 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).

Datasheet FDAI 165

NEW

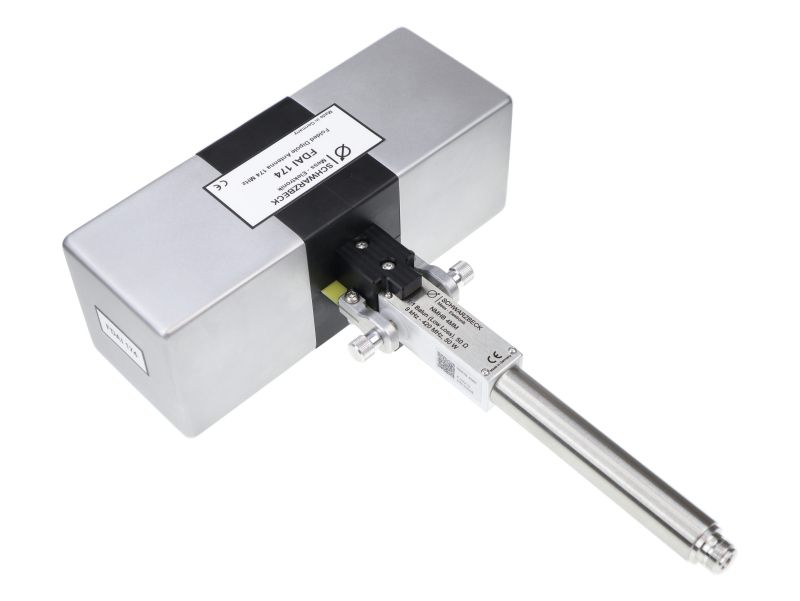

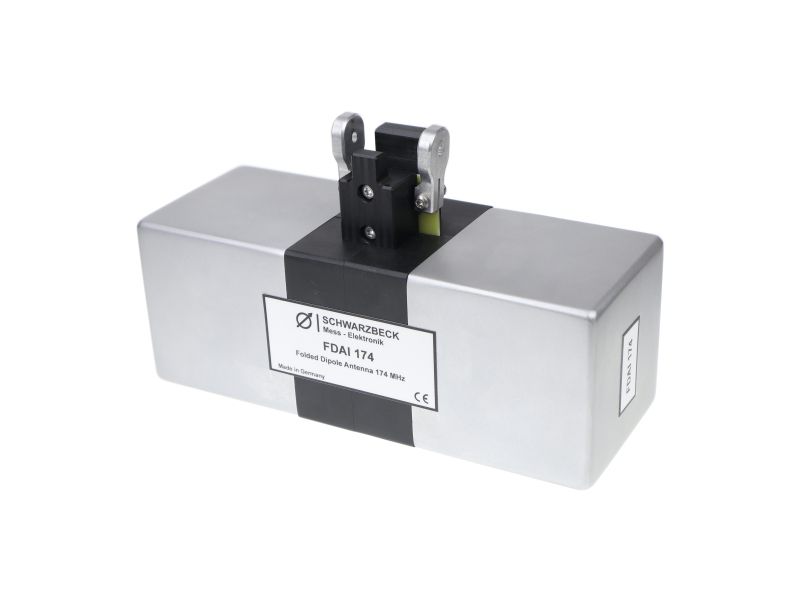

The FDAI 174 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 174 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 166 MHz and 180 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).

Datasheet FDAI 174

NEW

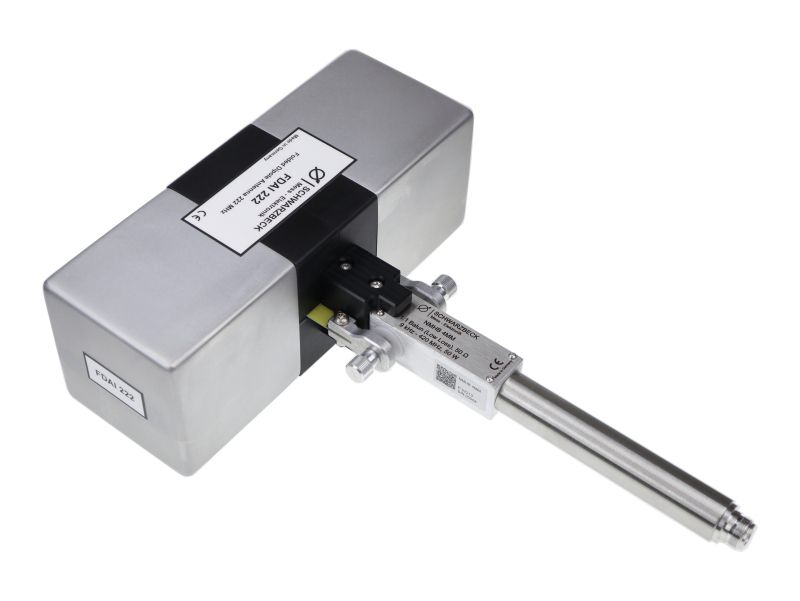

The FDAI 222 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 222 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 215 MHz and 246 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).

Datasheet FDAI 222

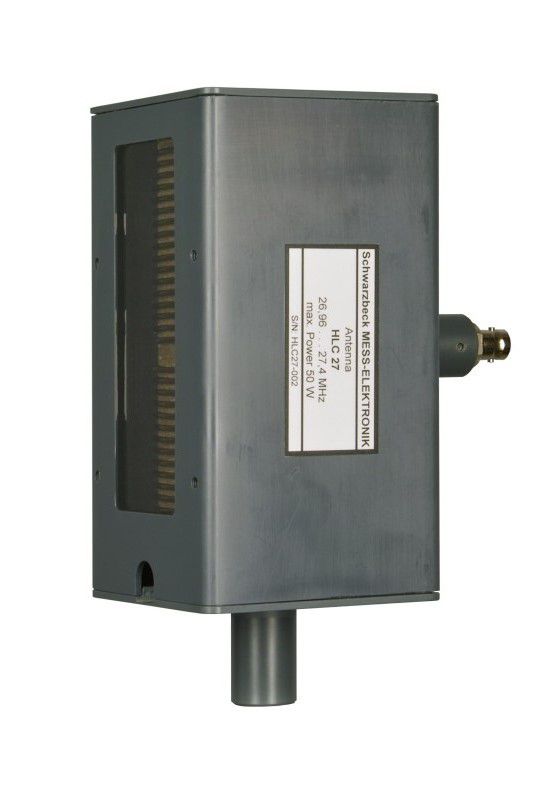

The HLC 27 is a compact dipole antenna for automotive immunity testing, embedded in a plastic housing.

Datasheet HLC 27

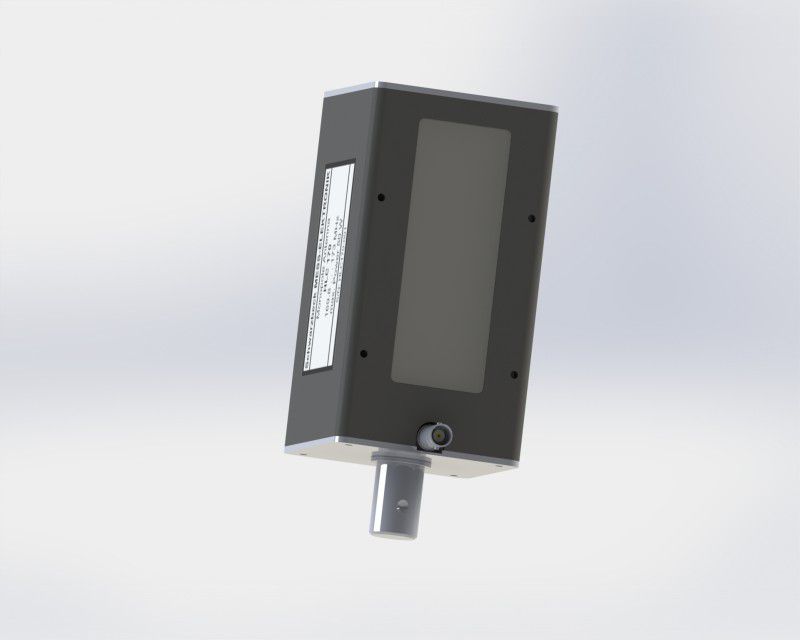

The antenna HLC 146 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.

The antenna construction stems from IETR Institute d'Electronique et de Telecommunications de Rennes.

  Datasheet HLC 146

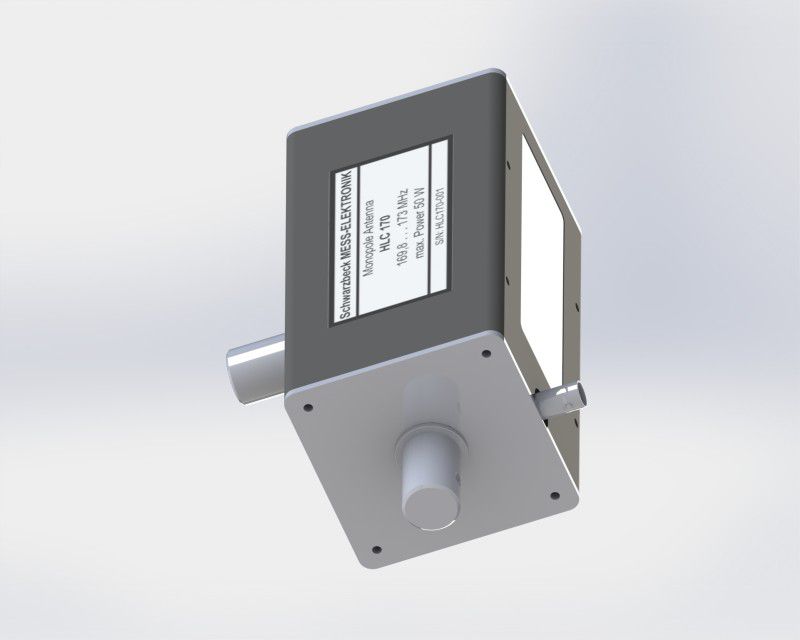

The antenna HLC 170 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.

The antenna construction stems from IETR Institute d'Electronique et de Telecommunica- tions de Rennes. It was modified for ISO 11452-9.

  Datasheet HLC 170

The antenna FAN 405 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.

The antenna construction stems from IETR Institute d'Electronique et de Telecommunications de Rennes.

Datasheet FAN 405

The antenna FAN 450 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.

The antenna construction stems from IETR Institute d'Electronique et de Telecommunications de Rennes.

Datasheet FAN 450

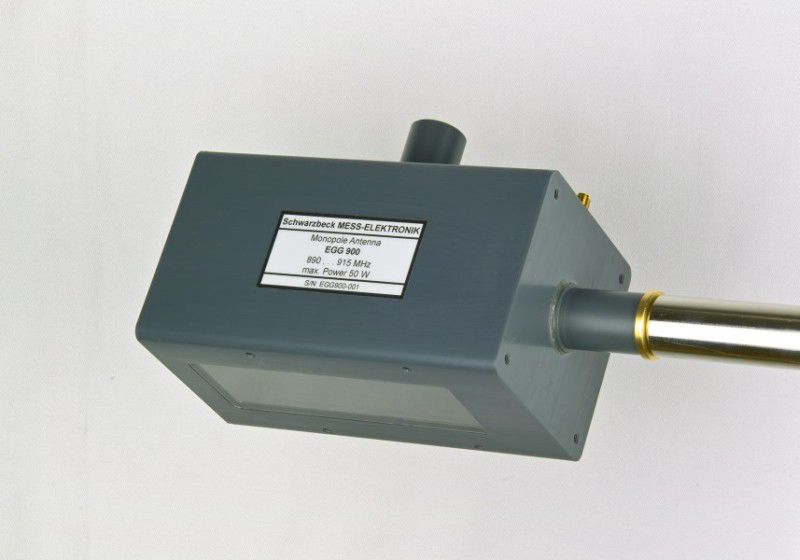

The antenna EGG 900 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.

The antenna construction stems from IETR Institute d'Electronique et de Telecommunications de Rennes.

Datasheet EGG 900

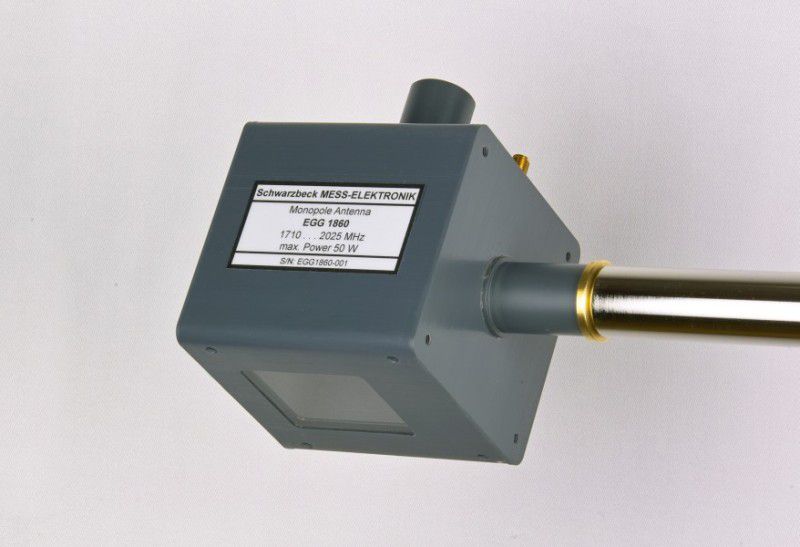

The antenna EGG 1860 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.

The antenna construction stems from IETR Institute d'Electronique et de Telecommunications de Rennes.

Datasheet EGG 1860

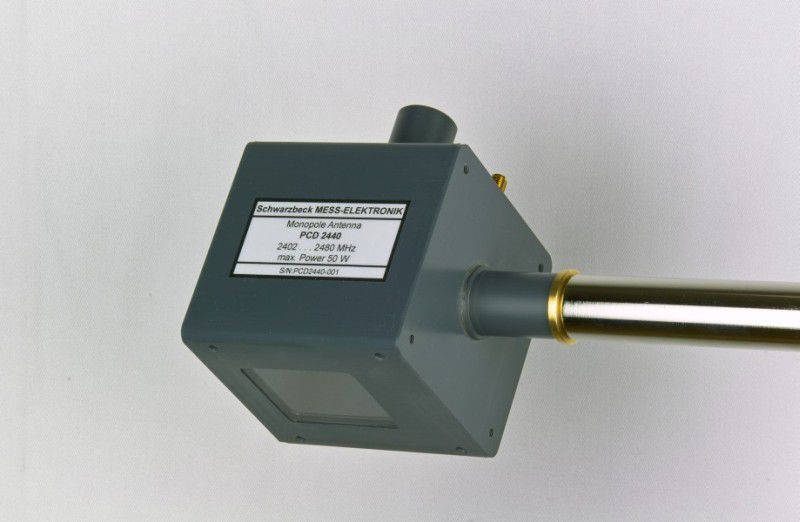

The antenna PCD 2440 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level.

Datasheet PCD 2440

Wireless Immunity -Wand- Antenna acc. to Dell Specification -SYSTEM IMMUNITY TO WIRELESS GSM TEST REQUIREMENT.

Linear polarised handheld dipole with omnidirectional H-plane pattern for immunity tests agianst electromagnetic waves in the GSM frequency bands.

Datasheet WAND0918

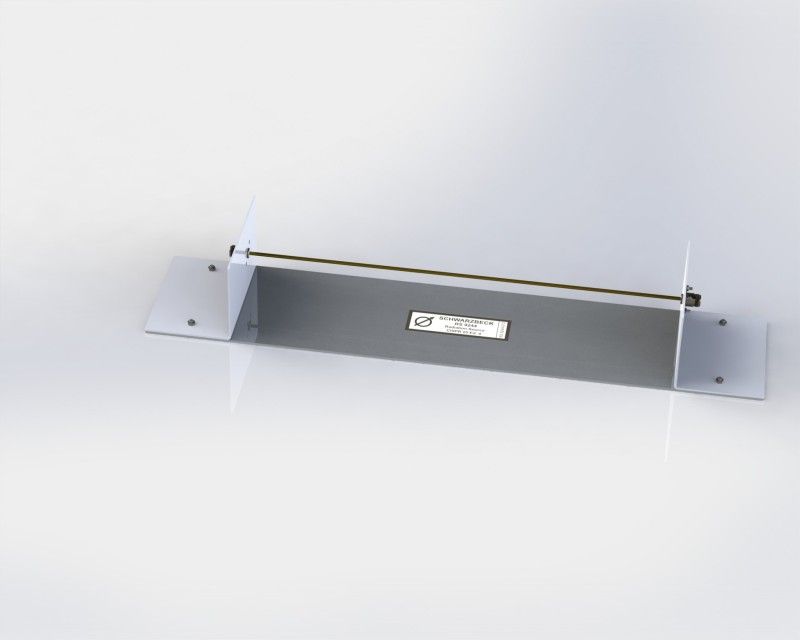

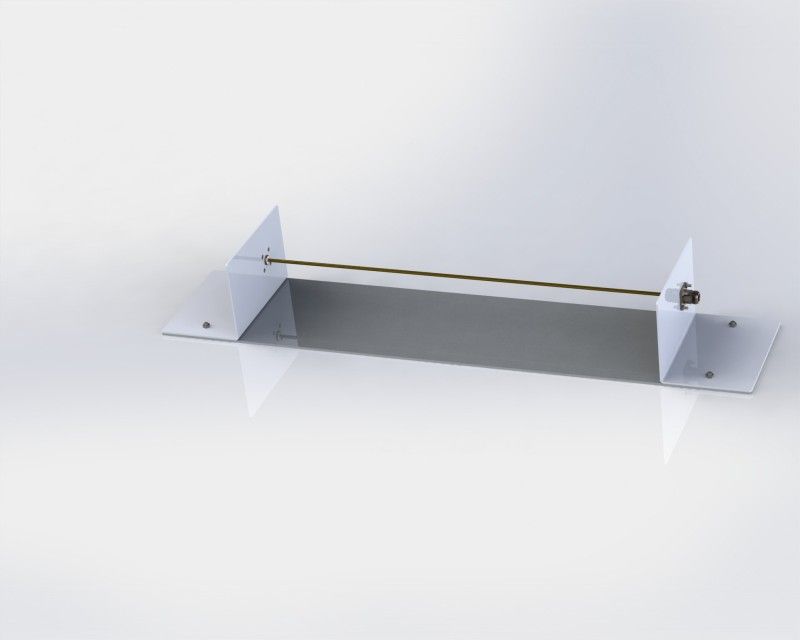

The radiation source RS 9244 complies to CISPR 25 Edition 4, which proposes the "Long Wire Antenna" and is used as reference source to evaluate the suitability of absorber lined shielded enclosures (ALSE) according to the 'Long Wire Antenna method'.

Datasheet RS9244

The VAMP 9243 is a vertikal active rod antenna with reduced noise floor.

With mounting nut for AM 9144 and rechargeable battery

Datasheet VAMP 9243

Options:

Opt. GP: Aluminium-Groundplane, 0.6 x 0.6 m

Opt. ACS 410: Charger ACS 410

Opt. VT: 20 dB plug in divider to measure high field strength
[picture]

Opt. CA 9243: Calibration Adapter for VAMP 9243

Opt. CA 9243

Opt. MIL461F bonding kit:

Bonding kit for VAMP 9243 acc. MIL-STD-461F consisting of a BNC

cable double shielded ca. 70 cm, with braid

current blocking ferrite in the center, elbow aluminium angle

with BNC bulkhead adapter.

  Opt. MIL 461F Bonding Kit

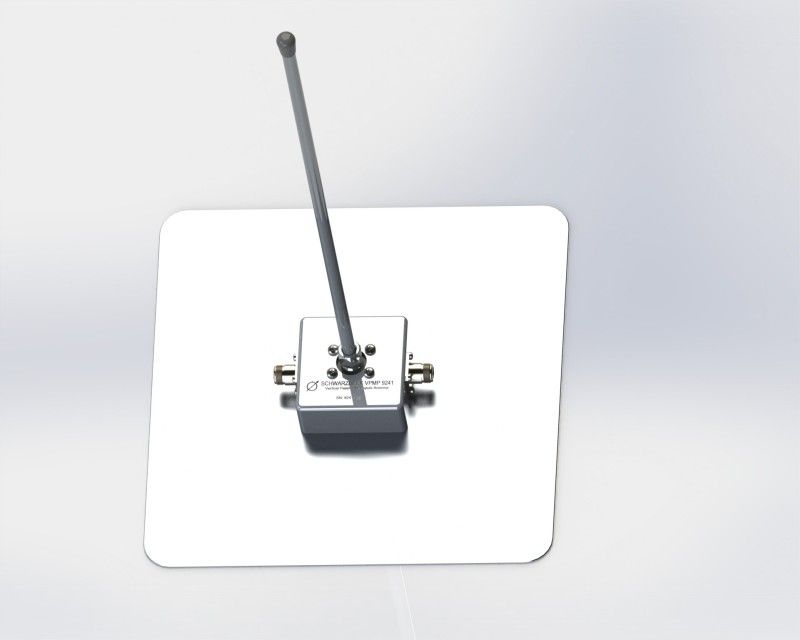

The vertical passive monopole consists of a flat alumium base plate and a milled aluminium housing, which has two N-connectors at the sides and an element clamping fixture on top. The element clamping fixture with a nominal diameter of 10 mm accepts the vertical rod of 0.5 m length, which is included in standard delivery. A typical application is the validation of ALSE (Absorber lined shielded enclosure) as proposed by CISPR 25 Ed. 4. An optional top loading disc (TLD 9241) is also available. Instead of the 0.5 m rod nearly all element types of the Schwarzbeck product range can be used, e.g. biconical elements BBA 9106, BBAL 9136, BBAK 9137, BBVK 9138, or collapsible elements FBAL 9177, FBAB 9178, or the telescopic elements of the VHA 9103.

Monopol acc. CISPR/D/391/CD (CIS/D/386/CD, CIS/D/388A/CC)

Datasheet VPMP 9241

Option:

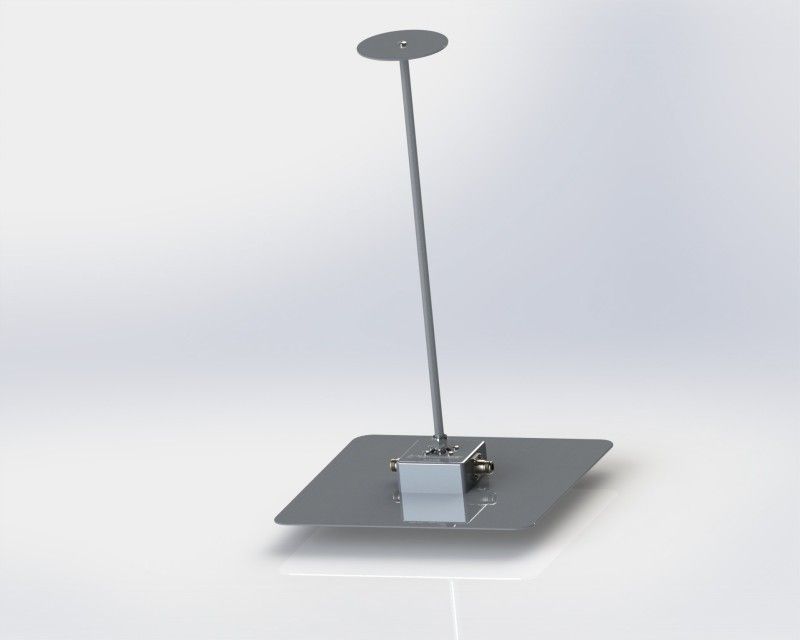

Opt. TLD 9241:

Top loading disc for VPMP 9241

diameter < 12 cm.

The EMC probe 100 series consists of three loop probes for magnetic fields and one stub probe for electric field.

Loop probes: 100A, 100B and 100C

Stub probes: 100D

Datasheet 100 Series EMC Probes
