Passive Magnetic Antennas, RX-Loop Antennas

pdficon largeOverview Passive Magnetic Antennas, RX-Loop Antennas

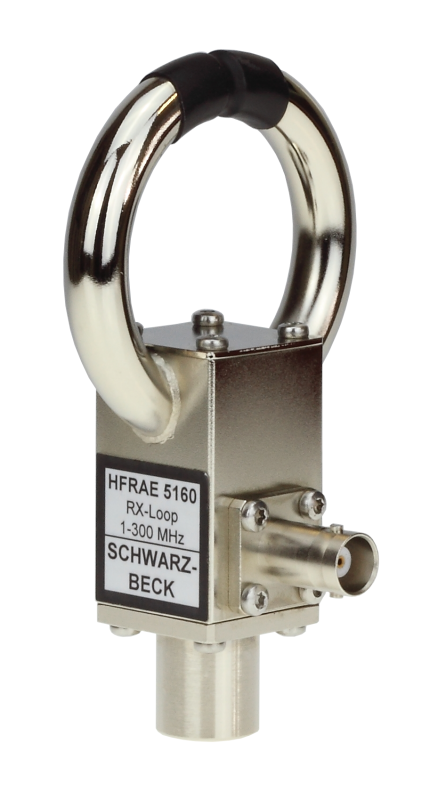

  • HFRAE 5160 - Passive RX Loop Antenna - Schwarzbeck



HFRAE 5160



Receiving VHF - UHF loop antenna

diam. 50 mm

2-300 MHz

Transformer



pdficon small Datasheet HFRAE 5160

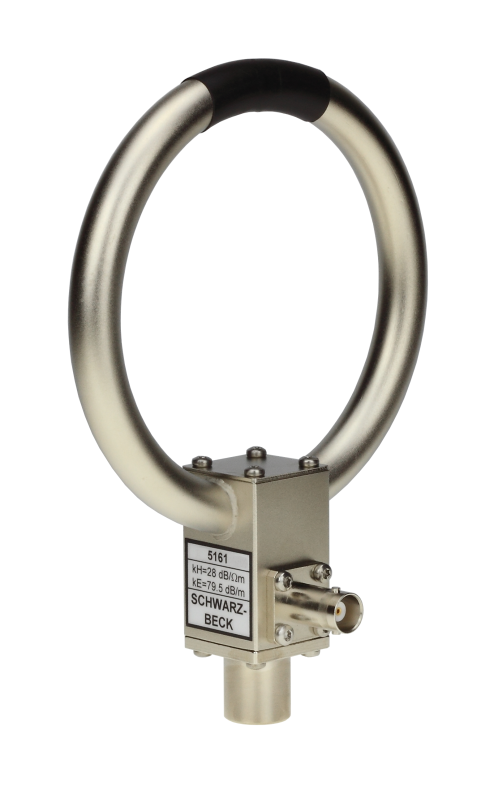

  • HFRAE 5161 - PassiveMagnetic RX Loop Antenna - Schwarzbeck



HFRAE 5161



HF RX Loop

diam. 100 mm

0.07 - 120 MHz

1 turn

Transformer



Datasheet HFRAE 5161

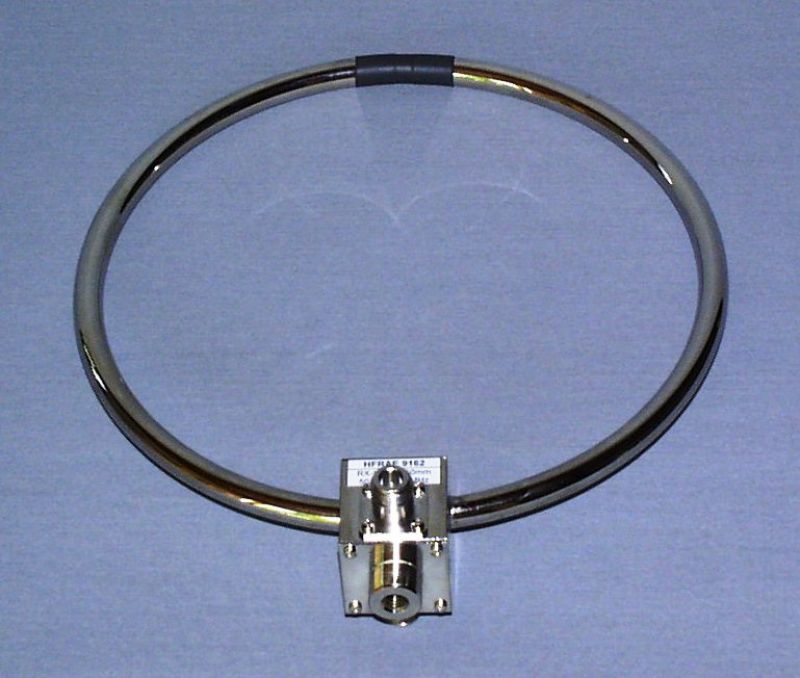

  • Schwarzbeck HFRAE5162 VLF-HF RX loop



HFRAE 5162



VLF-HF RX Loop

diam. 250 mm

0.05 - 30 MHz

1 turn

Transformer



Datasheet HFRAE 5162

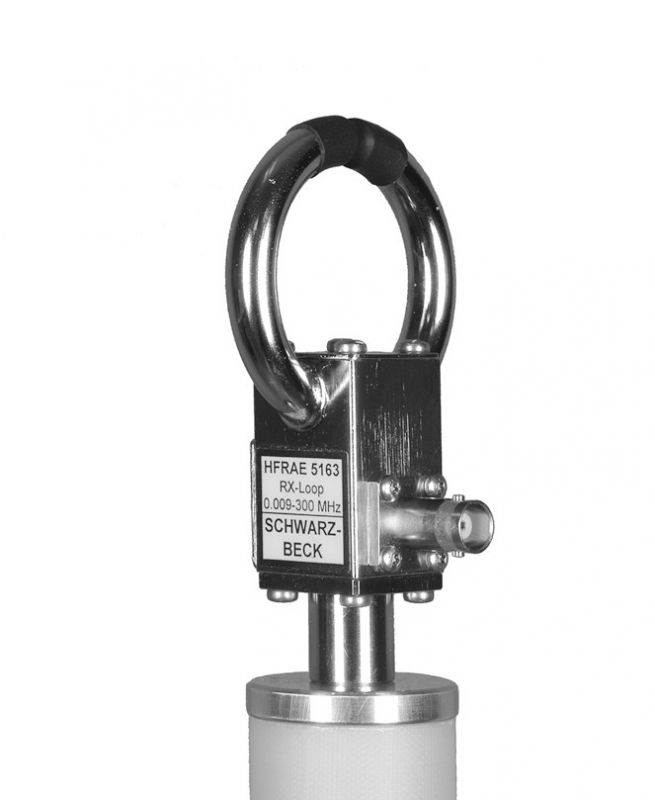

  • Schwarzbeck HFRAE 5163 RX - Loop Antenna



HFRAE 5163



Passive magnetic loop antenna

diam. 50 mm

0.009 - 300 MHz

1 turn

Transformer



pdficon small Datasheet HFRAE 5163






NEW

  • HFRA 5164


HFRA 5164



Passive magnetic loop antenna

diam. 100 mm

0.01 - 120 MHz

3 turns



pdficon small Datasheet HFRA 5164



Recommended accessories:

NFCN 1356 - Compensation network for the HFRA 5164 radiating loop
